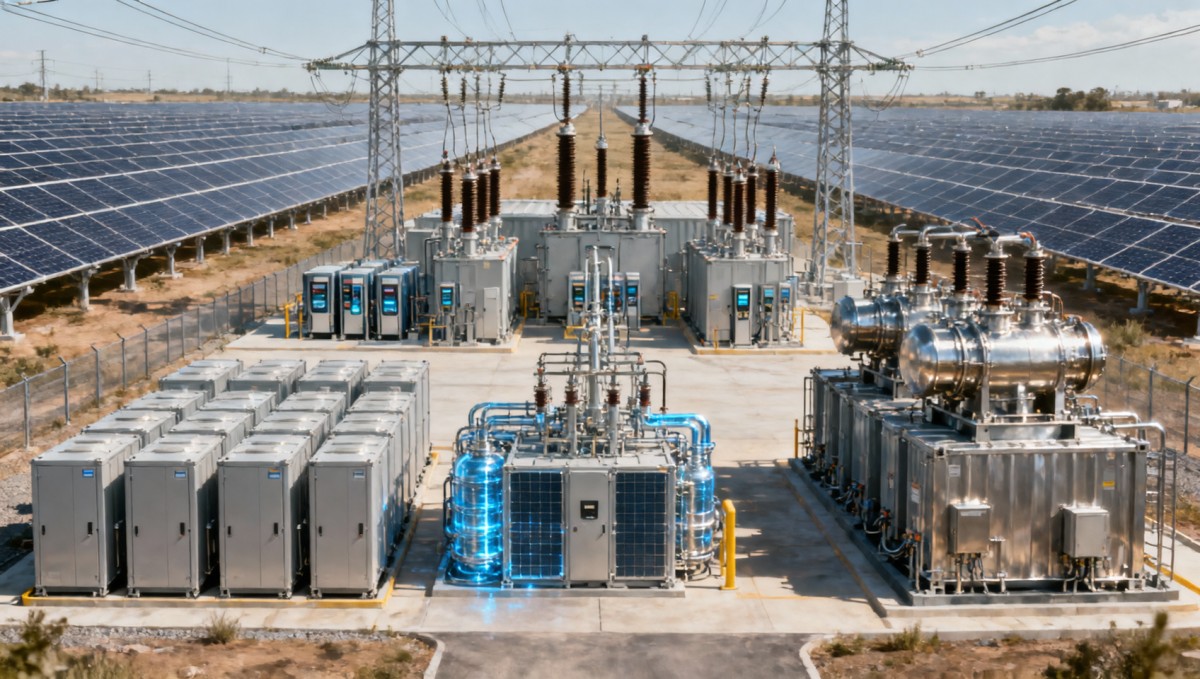

Utility scale projects face a new interconnection bottleneck

As utility scale energy projects accelerate, a new interconnection bottleneck is reshaping timelines, costs, and system planning. From ESS and Battery Storage to power transformers and liquid cooling ESS, every layer of Energy Hardware now affects Grid Stability, Grid Resilience, and Renewable Integration. For developers and operators, understanding how these constraints also influence Fast Charging and broader power infrastructure is becoming essential.

For utility-scale solar, storage, EV charging, and hybrid energy projects, the challenge is no longer limited to land, modules, batteries, or financing. In many regions, the decisive constraint is the ability to secure grid interconnection capacity within an acceptable schedule. Queue congestion, transformer shortages, substation upgrade requirements, and more demanding technical studies can add 12 to 36 months to project delivery.

This shift matters to information researchers, plant operators, EPC teams, and infrastructure planners because interconnection is now both a technical and commercial risk. The projects most likely to advance are not always the largest. They are often the ones built around realistic hardware specifications, compliant protection schemes, and grid-aware design choices from the earliest phase.

For organizations using G-EPI as a technical reference point, the key question is practical: how do developers and operators reduce interconnection risk while maintaining performance, safety, and future expandability across PV, ESS, transformers, EV charging, and smart grid assets? The answer starts with understanding where the bottleneck has moved.

Why interconnection has become the critical path for utility-scale energy projects

A decade ago, many project teams treated interconnection as a late-stage engineering task. Today, it is often the earliest make-or-break decision. Developers may secure land, complete a preliminary design, and line up equipment procurement, only to discover that local substations are constrained, available fault current margins are tight, or transmission upgrades are needed beyond the project fence line.

Several forces are driving this bottleneck. First, renewable deployment has accelerated faster than many grid reinforcement programs. Second, electrification has increased load growth from data centers, industrial facilities, and fast charging hubs. Third, more projects now include Battery Storage or hybrid PV-plus-ESS configurations, which change short-circuit behavior, inverter response, and dispatch profiles. Each of these factors can trigger additional studies and hardware requirements.

Interconnection queues in many markets now include projects that exceed existing hosting capacity by 2x or 3x at specific substations. Even where available capacity appears sufficient on paper, the final outcome depends on reactive power support, protection coordination, transformer loading, thermal ratings, and voltage regulation under seasonal conditions. This is why two projects of the same MW size can face very different outcomes.

For operators, the consequence is direct. A delayed point of interconnection can shift COD targets, extend financing exposure, and force redesign of cable routes, PCS sizing, or transformer arrangements. For researchers and procurement teams, the lesson is equally clear: interconnection readiness must be evaluated alongside module efficiency, ESS duration, and BOS cost from day 1.

The bottleneck is no longer only in the queue

The interconnection bottleneck now includes three layers: study capacity, physical grid capacity, and equipment supply capacity. A project may pass initial screening but still be delayed because high-voltage transformers have lead times of 40 to 70 weeks, protection relays require utility approval cycles of 8 to 16 weeks, or switchgear delivery pushes commissioning into the next fiscal year.

This means utility-scale developers should stop thinking of interconnection as a single permit and instead treat it as a linked chain of grid analysis, equipment validation, and construction sequencing. Weakness in any one layer can interrupt the entire project timeline.

Typical interconnection delay drivers

• Insufficient hosting capacity at the target feeder, substation, or transmission node.
• Long study cycles for load flow, short-circuit, harmonic, and transient stability analysis.
• Transformer, breaker, cable, and relay lead times that exceed planned construction windows.
• Design revisions caused by non-compliant inverter behavior, reactive power requirements, or grounding issues.
• Utility requests for network upgrades that materially change project capex or land use.

The table below summarizes how the bottleneck has shifted from a permitting issue to a system-wide engineering constraint.

The core takeaway is that interconnection bottlenecks are now multi-dimensional. Successful utility-scale projects reduce queue exposure, match hardware to grid conditions, and align procurement with utility approval windows rather than treating these as separate workstreams.

How ESS, transformers, and power electronics affect grid acceptance

Energy storage is often presented as a solution to grid congestion, and in many cases it is. A well-designed ESS can smooth PV output, provide ramp-rate control, support reactive power operation, and shift energy away from peak network stress periods. But storage can also complicate interconnection if the PCS, transformer arrangement, protection settings, and control logic are not aligned with utility requirements.

For example, a 100 MW / 200 MWh Battery Storage project may appear straightforward from an energy market perspective, yet the utility may focus more heavily on fault contribution, harmonic distortion, dynamic voltage support, and charging behavior during constrained system periods. In some cases, the charging profile itself becomes a grid planning issue, especially where local feeders already support fast charging depots or industrial electrification loads.

Transformers are another hidden constraint. Utility-scale projects increasingly depend on medium-voltage and high-voltage transformer availability, thermal margins, impedance matching, and insulation coordination. Even a small mismatch in transformer specification can affect protection coordination, energization risk, and utility acceptance. Where liquid-cooling ESS is used, thermal performance can improve battery life and footprint efficiency, but auxiliary load and operational redundancy still need to be modeled in station service planning.

In practical terms, developers should treat ESS and transformer selection as interconnection decisions, not just equipment decisions. This is especially true for hybrid plants where PV, battery storage, and export controls share a common point of interconnection and must comply with utility dispatch and power quality rules over a 20- to 30-year asset life.

Grid-facing hardware parameters that influence approvals

The exact parameters vary by jurisdiction, but utility studies commonly examine voltage ride-through behavior, frequency response, reactive power range, harmonic performance, transformer impedance, fault duty, and protection selectivity. These are not minor details. A project with excellent battery cells or high-efficiency PV modules may still stall if inverter controls cannot satisfy local grid code performance windows.

Key technical checkpoints before final hardware freeze

1. Confirm the required reactive power range at the point of interconnection, such as 0.95 lagging to 0.95 leading if specified locally.
2. Validate transformer impedance, tap range, and thermal rating against both export and charging scenarios.
3. Review PCS harmonic performance and filter strategy under part-load and full-load operation.
4. Coordinate protection settings for feeder, collector system, transformer, and utility relay interfaces.
5. Assess auxiliary loads, especially for liquid cooling ESS, HVAC redundancy, and black-start related functions.

The following comparison helps teams translate hardware choices into interconnection implications.

A recurring mistake is to optimize only for capex per kWh or module efficiency while underestimating grid-facing behavior. Projects that reach financial close faster often do so because their hardware package is easier to model, easier to approve, and easier to commission under utility supervision.

The growing link between renewable integration, fast charging, and local grid resilience

Interconnection planning is no longer limited to generation projects alone. Fast Charging infrastructure, fleet depots, industrial electrification, and distributed storage are increasingly interacting with the same substations and feeders targeted by utility-scale PV and ESS developers. A single 8-bay ultra-fast charging site can create a step change in local demand, especially when chargers operate in the 150 kW to 350 kW range and session clustering is high.

This matters because local grid resilience depends on the combined profile of supply and demand assets. In some regions, storage can improve hosting capacity by absorbing surplus solar during midday and discharging in evening peaks. In other locations, simultaneous EV charging demand and battery charging can aggravate congestion. Developers who ignore adjacent load growth may underestimate transformer loading or utility upgrade triggers.

Operators should also recognize that resilience is broader than backup power. Grid resilience includes recovery speed after disturbances, tolerance to voltage excursions, flexible dispatch, and the ability to maintain service under thermal or equipment stress. That is why smart grid devices, digital relays, feeder automation, and transformer monitoring are becoming part of the same conversation as solar modules and battery cells.

For technical researchers, the priority is to evaluate how energy hardware decisions influence the full infrastructure ecosystem. High-efficiency N-type TOPCon modules may reduce land use per MW. Liquid cooling ESS may improve energy density and operating consistency. Ultra-fast DC chargers may support transport decarbonization. Yet all three ultimately converge at the grid interface, where resilience and capacity must be managed together.

Scenarios where interconnection stress rises quickly

• Hybrid PV-plus-ESS projects sharing a constrained substation with new EV fleet charging loads.
• Rural substations with strong solar resources but limited transformer headroom or weak voltage support.
• Industrial parks adding electrified heat, hydrogen pilots, or DC fast charging while seeking onsite storage.
• Microgrids expanding from resilience applications into grid-export and ancillary service participation.

What operators should monitor

At minimum, teams should track feeder loading, transformer hot-spot temperature margin, charger simultaneity assumptions, ESS charge-discharge windows, and expected curtailment frequency. Even a 5% to 10% error in peak coincidence assumptions can change upgrade needs when substations are already close to thermal or voltage limits.

The interconnection bottleneck is therefore not only a utility-scale generation issue. It is becoming a shared planning problem across renewable integration, mobility electrification, and digital grid modernization. Organizations that analyze these assets in isolation are more likely to face redesign, delayed energization, or underutilized infrastructure.

A practical framework for selecting hardware and reducing interconnection risk

The most effective response is an integrated front-end engineering process. Instead of finalizing equipment and then submitting interconnection studies, advanced teams build an iterative workflow that links grid data, equipment capability, procurement lead times, and site constraints. In practice, this means running electrical assumptions and supply-chain assumptions in parallel from the first feasibility stage.

For utility-scale PV and ESS projects, one useful approach is to divide decision-making into 4 stages: screening, grid-fit design, utility alignment, and procurement lock-in. The screening stage identifies substations, available capacity ranges, and likely upgrade triggers. The grid-fit design stage tests inverter and transformer configurations against voltage and protection requirements. Utility alignment confirms study expectations, relay philosophy, and data submission quality. Procurement lock-in then prioritizes components with acceptable lead times and standards alignment.

This framework is especially valuable where developers must balance IEC, UL, and IEEE expectations across international or multi-market portfolios. A component that performs well in one jurisdiction may still create additional review work elsewhere if its test data, model package, or certification pathway is not accepted by the local utility or authority. Data transparency is therefore a strategic advantage, not just a technical convenience.

For operators and procurement teams, the goal is to reduce uncertainty in three places: system behavior, delivery schedule, and acceptance testing. A project with a 52-week transformer lead time and unclear relay settings is less bankable than one with slightly higher capex but a validated protection package and shorter approval risk. The right choice is often the option with lower execution volatility.

Recommended decision criteria for utility-scale projects

The table below provides a practical decision matrix for teams comparing energy hardware under interconnection pressure.

The matrix shows why procurement should not focus only on price and nameplate ratings. Bankable projects require traceable technical evidence, realistic delivery schedules, and hardware behavior that can be defended during utility review and commissioning.

A 5-step implementation sequence

1. Map feasible points of interconnection and review likely capacity constraints within 2 to 3 candidate zones.
2. Pre-select PV, ESS, PCS, and transformer options using grid-code fit as a hard filter.
3. Align study models, relay philosophy, and protection one-line diagrams before final RFQ issuance.
4. Reserve long-lead components early, especially transformers, switchgear, and utility-approved relays.
5. Prepare commissioning and acceptance documents at least 8 to 12 weeks before energization.

This sequence helps teams avoid a common trap: securing attractive energy hardware but discovering too late that the package is difficult to approve, difficult to source, or difficult to commission within the desired window.

Common mistakes, operator FAQs, and what to do next

Many utility-scale projects underperform not because the technology is weak, but because interconnection assumptions are too optimistic. One frequent mistake is using generic equipment data instead of utility-accepted models. Another is assuming that any ESS automatically improves grid resilience without confirming local charging restrictions, substation loading patterns, or relay impacts. A third is delaying transformer procurement until after all studies are complete, even when lead times are already known to exceed 10 months.

Operators also sometimes separate maintenance planning from interconnection strategy. In reality, maintenance access, cooling system redundancy, relay testing intervals, and spare transformer logistics all influence long-term grid performance. A system that passes initial energization but cannot maintain stable operation during high-temperature conditions or peak-load events still creates operational risk.

For information researchers and technical users, the best next step is to build a project checklist that links hardware evidence to utility review items. That checklist should cover standards documentation, dynamic model availability, lead times, transformer parameters, auxiliary load assumptions, and commissioning procedures. The earlier these items are aligned, the lower the probability of costly redesign.

G-EPI’s role in this environment is to support grid-aware decision-making through verifiable engineering data across Solar PV, ESS, EV Charging Infrastructure, Smart Grid & Transformers, and Hydrogen & Green Fuel Tech. For teams navigating interconnection uncertainty, access to structured technical benchmarks can shorten evaluation cycles and improve design confidence.

How long can interconnection-driven delays typically add?

Depending on study backlog, equipment availability, and required network upgrades, delays of 6 to 24 months are common planning scenarios. Where major substation or transmission work is required, schedules may extend further. The practical lesson is to model best-case, base-case, and constrained-case timelines rather than relying on a single COD target.

Which hardware should be prioritized earliest?

High-voltage transformers, medium-voltage switchgear, utility-approved protection relays, and PCS packages with accepted dynamic models should be reviewed early. These items often define both technical acceptance and schedule realism. In many projects, a delay in one of these packages can negate savings achieved elsewhere.

Can liquid cooling ESS help with interconnection?

Indirectly, yes. Liquid cooling ESS can improve thermal consistency, support denser layouts, and reduce performance drift in challenging climates. However, it does not remove grid constraints by itself. Utilities still evaluate charging behavior, PCS response, auxiliary consumption, safety integration, and control strategy at the point of interconnection.

Priority actions for developers and operators

• Start interconnection screening before final land, module, or battery package commitments.
• Use hardware data that supports grid studies, not only commercial comparison.
• Verify transformer and switchgear lead times against construction and energization milestones.
• Integrate EV charging, onsite load growth, and future expansion into the grid model.
• Build a commissioning plan that reflects utility witness requirements and relay test procedures.

Utility-scale projects now compete as much on interconnection readiness as on energy yield or storage duration. Developers, EPCs, and operators that combine data transparency, standards-aware hardware selection, and realistic grid planning will be better positioned to protect schedules and improve project bankability. To evaluate your next project with a stronger engineering basis, contact G-EPI to get a tailored technical assessment, compare hardware pathways, and explore grid-ready solutions in more detail.
