How flexible loads can ease utility renewable integration

Flexible loads support utility renewable integration by moving electricity use into periods when renewable generation is available and reducing demand when the grid is constrained. The practical starting point is to identify work that can move in time: charging a vehicle before its departure, cooling a building within an acceptable temperature range, or filling a water tank before its stored volume is needed. Each adjustment needs a defined service requirement, a controllable power range, and a safe return to normal operation.

The benefit depends on where and when the load changes. Increasing consumption during a solar surplus can reduce renewable curtailment, but the same action can overload a local transformer if several facilities respond together. A workable scheme therefore combines renewable availability with network limits and the operating needs of the equipment.

Match the load to the constraint being relieved

Start with a specific grid problem. A midday export limit, an evening demand peak, and a rapid drop in wind output require different responses. An export constraint calls for additional consumption behind the constrained connection. An evening peak calls for demand reduction or earlier completion of energy-intensive tasks. Managing a sudden generation change requires loads that respond quickly enough and remain available for the required duration.

Location matters as much as total power. A flexible load on another feeder will not necessarily relieve a voltage or thermal constraint near a solar installation. Likewise, additional consumption cannot resolve curtailment caused by an unavailable transmission path unless it changes power flow through that constraint. Confirm the electrical relationship between the load and the problem before assigning a renewable integration benefit.

Separate energy shifting from load shedding. Shifting preserves a service while changing when electricity is consumed. Shedding reduces consumption during an event and can leave unfinished work or reduced service. Both have useful applications, but their recovery requirements differ. A curtailed charging session still needs energy before departure; a ventilation reduction must remain within air-quality limits throughout the event.

Find usable flexibility inside operating limits

A device’s rated power rarely equals its available flexibility. A charger may already be operating below its limit, a compressor may be unable to stop safely, and a pump may need to run because storage is nearly empty. Estimate flexibility from current operating conditions and the service that must still be delivered.

For EV charging, calculate the energy still required before departure and compare it with the energy deliverable during the remaining connection time. That calculation must account for shared charger capacity and charging taper where relevant. A long parking period creates little flexibility if the vehicle arrives nearly empty and needs most of that period to reach its required charge.

Thermal loads require a different assessment. Precooling creates a temporary buffer, but its duration changes with outdoor conditions, occupancy, insulation, and internal heat gains. Temperature alone is an incomplete control variable where humidity or ventilation sets the tighter limit. Frequent compressor switching also introduces equipment constraints that a simple electricity-price schedule will miss.

Industrial flexibility often sits in supporting systems rather than the main production line. Refrigeration, compressed-air storage, and intermediate product storage can decouple electricity use from immediate production demand. Any schedule change still needs to preserve pressure, temperature, product quality, and safe shutdown conditions.

Turn renewable forecasts into bounded schedules

A useful control sequence combines a forward schedule with updates from actual conditions. The schedule places movable consumption into expected renewable-rich periods. Subsequent updates adjust that plan as generation, equipment availability, and service requirements change. Forecasts establish an opportunity; measurements determine whether it remains available.

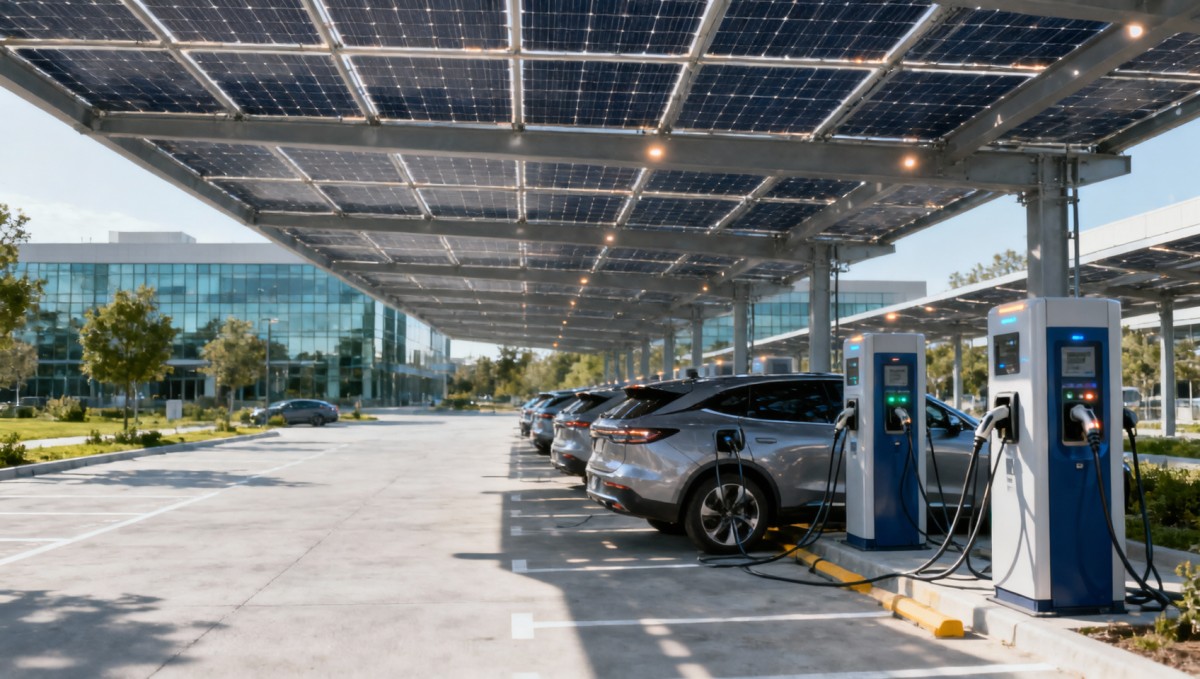

Consider workplace charging during a sunny day. The initial schedule reserves enough charging time to meet declared departure needs while placing discretionary charging around expected solar production. If cloud cover reduces output, charging power falls within the remaining scheduling margin. As departure approaches, the minimum power needed to complete charging rises, reducing the capacity available for grid support.

This relationship should be visible in the control system. For each participating load, record its present demand, upward and downward adjustment capability, maximum response duration, and recovery requirement. Availability must expire or update when equipment disconnects, a production schedule changes, or a service limit approaches.

Keep a reserve of flexibility when forecast uncertainty is material. Scheduling every available load into the same expected solar peak leaves little room to absorb a forecast error. A rolling schedule that recalculates the remaining energy requirement avoids committing flexibility that has already been consumed.

Choose signals that represent the actual objective

Electricity prices provide an economic signal, but a low price does not prove that a particular feeder has spare capacity or that renewable generation is being curtailed nearby. For a program intended to relieve a local constraint, utility dispatch instructions or agreed network-capacity limits need to inform the schedule directly.

Different signals can conflict. A site may receive a request to increase consumption while its connection is near its import limit. Establish control priority before operation: equipment protection and essential service limits take precedence, followed by binding connection limits and accepted dispatch obligations. Price optimization then uses the remaining freedom. The controller should reject infeasible requests and report the available response.

Prevent synchronized response and rebound peaks

A common failure occurs after a successful reduction: every paused load restarts together. The resulting rebound can create a new peak, erase part of the network benefit, or move demand into a period with less renewable generation. Recovery belongs in the original dispatch plan.

Use staggered starts, controlled power ramps, and aggregate demand limits to manage the return. For charging, allocate recovery power according to departure urgency. For cooling, account for how close each space is to its comfort boundary. Pumps should restart according to storage and pressure needs rather than a common timer.

Additional consumption also needs coordination. If several sites respond simultaneously to the same low-price interval, their combined demand can exceed local capacity. A site-level power cap protects the connection, while feeder-level coordination addresses constraints shared across multiple sites. Schedules should respect phase loading where single-phase equipment creates uneven demand.

Power changes require attention beyond total kilowatts. Large motor starts can affect voltage, and adjustable-speed equipment has operating ranges and power-quality characteristics that need to remain acceptable. A flexible-load event should stay within the electrical and mechanical envelope already established for the equipment.

Make communications failures predictable

Remote scheduling should sit above local protective controls. Temperature limits, pressure interlocks, vehicle charging protections, and emergency functions must remain effective when an external command arrives. Grid support cannot depend on bypassing those protections.

Define how long a command remains valid and what happens when communications stop. Continuing the last instruction indefinitely can leave vehicles undercharged or thermal storage depleted. Immediately releasing every load can create a demand spike. A suitable fallback restores local service within a bounded demand profile, with urgent requirements taking priority.

The interface needs more than an on/off command. It should communicate requested power, permitted duration, command expiry, equipment availability, and whether the request was accepted. Time synchronization matters because a delayed instruction can arrive after the grid condition has changed.

Authenticated commands, controlled access, and event logs support dependable operation. Local overrides should be recorded with their cause so that unavailable flexibility is distinguishable from a communications fault or an equipment failure.

Verify the response at the right measurement point

Device telemetry shows whether a load followed its instruction. Connection-point metering shows what happened to the demand seen by the grid. Both are useful because an apparently successful device response can be offset by unrelated consumption elsewhere on the site.

For example, increasing EV charging while rooftop solar output rises may leave site imports unchanged. That can still absorb generation that would otherwise be exported, but the result differs from increasing grid demand. Keep separate records of controllable-load power, onsite generation where available, and net import or export.

Evaluating a demand reduction also requires an estimate of consumption without the event. Weather, occupancy, and production changes can distort this baseline. A lower meter reading alone does not establish delivered flexibility. Use an agreed baseline method and examine unusual operating conditions before attributing the entire change to control actions.

Renewable curtailment reduction requires additional evidence. A load increase during sunny weather does not prove that curtailed energy was recovered. That conclusion needs generation or dispatch information showing that renewable output was constrained and that the demand change relieved the relevant constraint.

Commission a limited operating envelope first

Begin with a bounded group of controllable loads and a clear service requirement. Record normal operation before dispatching events, then test the complete sequence: request, response, sustained operation, recovery, and loss of communications. Include conditions near the edge of availability, such as early vehicle departures, low tank levels, or high cooling demand.

Acceptance criteria should cover both grid response and service delivery. Relevant measures include response delay, sustained power adjustment, tracking error, recovery peak, missed charging requirements, and excursions outside process limits. Metering resolution should be fine enough to resolve the response being offered; broad interval averages can conceal short peaks or delayed action.

Expand participation only after the measured response supports the operating assumptions. If repeated overrides occur during the same production period or weather condition, reduce the offered flexibility for that condition. An availability estimate that reflects actual constraints gives utility dispatch a dependable resource and keeps essential operations within their limits.
