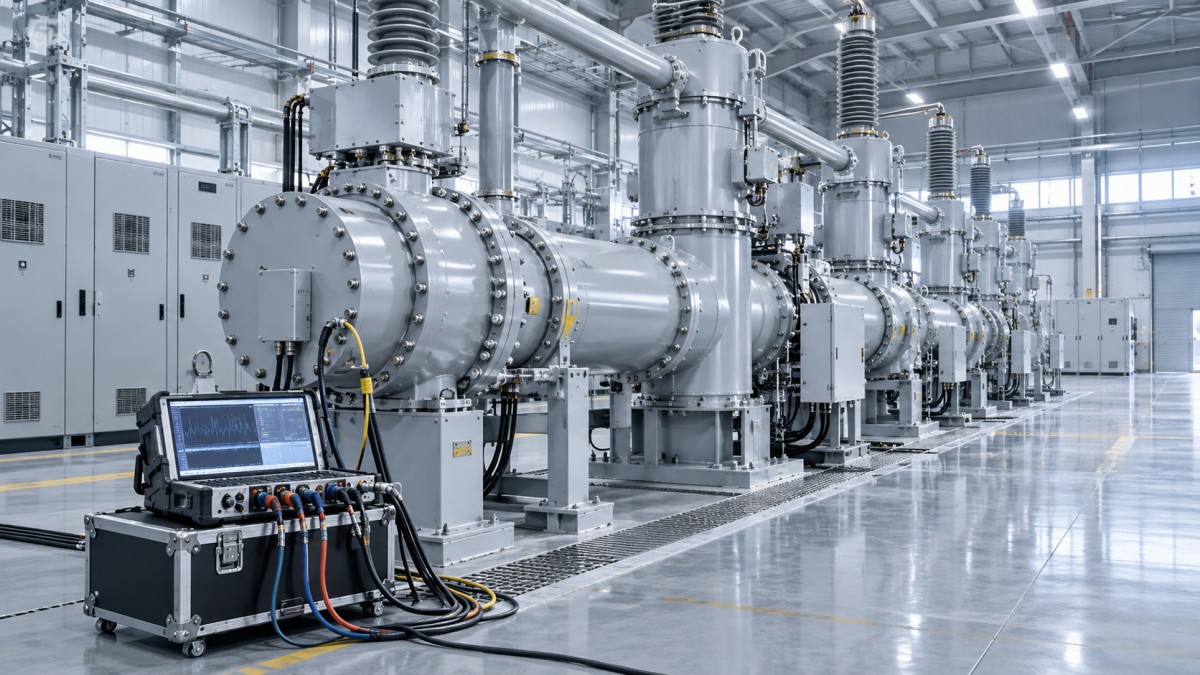

Commissioning delays in GIS electrical projects usually begin before testing: incomplete engineering, late equipment, installation defects, and unresolved utility interfaces prevent systems from becoming ready together.
For project managers, the critical issue is dependency management. One missing protection approval or defective gas compartment can block energization despite substantial mechanical completion.
Gas-insulated switchgear, or GIS, combines high-voltage equipment, insulating gas systems, protection, controls, and civil interfaces. Commissioning depends on verified readiness across all these boundaries.
The most effective schedule protection comes from identifying energization prerequisites early, assigning accountable owners, and measuring accepted evidence rather than reported installation progress alone.
This article explains where delays arise, how to identify the controlling bottleneck, and which checkpoints help engineering leaders protect outage windows and grid connection dates.
Which problems actually control the energization date?
A long punch list does not automatically explain a late project. The decisive issues are those blocking mandatory tests, operational acceptance, or permission to energize.
Start by tracing the next energization milestone backward through its dependencies. These typically include approved settings, completed testing, accepted documentation, and an authorized switching program.
Classify outstanding items by consequence: safety or functional blockers, prerequisites for specific tests, and minor defects that the asset owner may formally accept for later closure.
This classification prevents teams from prioritizing visible finishing work while overlooking an unapproved trip matrix, unavailable test equipment, or a missing utility witness appointment.
Track each blocker with an owner, required evidence, predecessor activity, and latest acceptable closure date. Update forecasts using confirmed constraints rather than optimistic completion percentages.
Recovery spending is justified when it removes a controlling constraint. Additional installation crews provide little benefit if utility approval remains the activity determining energization.
Why incomplete design coordination creates expensive rework
Design changes become commissioning delays when physical installation advances ahead of approved interface information. Typical examples include revised cable schedules, CT circuits, interlocks, and earthing connections.
A protection drawing may appear complete while its assumptions conflict with the GIS supplier’s terminal assignments. The discrepancy often emerges during point-to-point or functional testing.
Changes to current transformer ratios, polarity, or core allocation can affect relay settings and metering. Resolving them may require engineering review, rewiring, and repeated tests.
Building interfaces also matter. Incorrect foundation levels, embedded plates, cable entry positions, or maintenance clearances can prevent equipment alignment and delay release for electrical testing.
Before installation, conduct a coordinated review involving the GIS manufacturer, civil contractor, protection engineer, control-system integrator, and utility. Record every interface decision and approval responsibility.
Freeze critical interfaces through controlled design releases. When changes remain unavoidable, assess their effects on installed work, procurement, test procedures, and approval dates before implementation.
How delivery and site readiness failures consume commissioning time
Equipment delivery is only useful when the site can receive, preserve, assemble, and test it. Shipping milestones alone provide an incomplete picture of commissioning readiness.
Delayed bushings, cable terminations, local control cabinets, or specialist accessories can leave a nearly complete installation unable to proceed. Small missing components can control major milestones.
Factory acceptance testing reduces certain risks but does not prove site readiness. Transport condition, assembly quality, external connections, and integrated functions still require verification after delivery.
Water ingress, dust, unfinished roofing, inadequate lifting access, or unavailable auxiliary supplies can interrupt work. Poor storage conditions may also create inspection and preservation concerns.
Use a site release checklist covering structural acceptance, environmental conditions, lifting arrangements, access, temporary services, and manufacturer requirements. Link release to the actual installation sequence.
For critical components, track manufacturing completion, inspection release, transport, customs, delivery, and installation availability separately. A promised dispatch date cannot substitute for an executable site plan.
Why installation quality and gas handling delay testing
GIS assembly requires controlled procedures because contamination, damaged seals, incorrect alignment, or improper connections can compromise performance. Defects may remain hidden until formal testing begins.
If a compartment fails leak checks or gas quality acceptance, recovery may involve investigation, gas recovery, disassembly, corrective work, evacuation, refilling, and repeat verification activities.
The required sequence depends on the equipment and insulating medium. Follow manufacturer instructions and applicable environmental requirements for handling, personnel competence, equipment compatibility, and records.
Do not apply conventional SF6 procedures automatically to alternative gas technologies. Gas composition, operating pressures, handling equipment, and acceptance criteria can differ between product designs.
Schedule trained personnel, calibrated instruments, suitable recovery equipment, and sufficient approved gas before assembly begins. Confirm how rejected readings will be investigated and documented onsite.
Protect cleanliness and inspection hold points throughout installation. Discovering a defect before closing a compartment usually offers more recovery options than discovering it during final testing.
Why protection, controls, and SCADA become late bottlenecks
Mechanical completion can conceal substantial integration work. Protection relays, bay controllers, interlocks, alarms, and supervisory control and data acquisition systems must operate as one coordinated system.
Common blockers include unapproved relay settings, incorrect trip routing, inconsistent signal lists, missing communication parameters, and discrepancies between local indications and control-center displays during testing.
For IEC 61850 systems, configuration mismatches, GOOSE subscriptions, network settings, and time synchronization can affect functional performance. These issues require coordinated engineering and system verification.
A successful relay test does not demonstrate the complete protection chain. Verify the required path through wiring, logic, communications, trip circuits, and breaker operation appropriately.
Approve a shared interface register and functional test matrix early. Define who owns each signal, command, permissive, interlock, and acceptance decision across organizational boundaries explicitly.
Complete settings reviews and configuration checks before integrated testing starts. Reserve time for fault diagnosis and retesting, especially where utility communications or remote operations are involved.
How poorly planned testing creates avoidable waiting
Commissioning schedules often compress testing into a single activity. In practice, tests have different prerequisites, specialist resources, isolation requirements, witness points, and documentation needs onsite.
Depending on the project, work may include gas checks, electrical measurements, mechanical operations, interlock verification, protection testing, and specified dielectric tests under approved procedures onsite.
The exact test scope depends on equipment ratings, contract requirements, manufacturer instructions, and applicable standards. IEC 62271-203 is relevant to qualifying high-voltage AC GIS installations.
Agree test boundaries and acceptance criteria before mobilization. Confirm how connected cables, transformers, instrument transformers, and other equipment affect test arrangements and permissible test conditions.
A failed test can trigger more than repair time. Diagnosis, technical disposition, specialist availability, repeated testing, and renewed witnessing may extend the actual recovery period.
Build the schedule around prerequisite completion and realistic retest allowances. Book specialist test systems early and verify their suitability, calibration status, and availability for the required dates.
Why utility approvals and outage windows slip
Utilities may require advance submission of protection settings, test procedures, operating diagrams, metering arrangements, and commissioning records. Missing review periods can push energization beyond site completion.
Witness availability can also constrain progress. A test completed without an agreed witness or approved waiver may require repetition before the utility accepts the results.
Outage access introduces another dependency. Network conditions, operational priorities, weather events, or parallel projects can change availability even when the installation itself is technically ready.
Confirm booking deadlines, cancellation conditions, contingency windows, and minimum readiness requirements with the system operator. Include these dates as contractual and scheduling interfaces where appropriate.
Submit staged evidence packages as work progresses instead of assembling every record at the end. This allows reviewers to identify deficiencies while correction remains practical.
Maintain a clear distinction between contractor completion, owner acceptance, and utility permission to energize. Each milestone can require different evidence and a separate approval authority.
How to recover a delayed commissioning schedule
Begin recovery with a jointly verified blocker list. Reconcile the physical condition of the installation with engineering status, test results, approval requirements, and resource availability.
Separate tasks that can proceed independently from those requiring completed predecessors. Parallel work helps only when access, isolation, safety controls, and test validity remain protected.
For each recovery option, compare the expected schedule gain with added cost and execution risk. Consider specialist mobilization, expedited parts, extended shifts, and earlier document review.
Evaluate partial energization only where the system design, approved procedures, protection arrangements, isolation boundaries, and operating authority support it. Assess its effect on remaining work.
Protect configuration control during acceleration. Unrecorded wiring changes or temporary settings can create additional failures and make apparently completed tests unreliable for the final installed configuration.
Publish a short recovery forecast showing unresolved dependencies and decision deadlines. Explain uncertainty explicitly so management can distinguish a credible energization date from a conditional target.
What should project managers check before committing to energization?
A credible commitment requires more than a reported completion percentage. Confirm that every mandatory energization prerequisite has accepted evidence or a clearly authorized closure path.
Verify that installation inspections, required gas records, earthing checks, electrical tests, protection functions, and control interfaces meet the agreed acceptance criteria for the installed configuration.
Check that critical defects are closed and remaining items have formal dispositions. Ensure temporary connections, test links, overrides, and settings are reconciled through approved restoration procedures.
Confirm the utility’s acceptance status, outage authorization, switching documentation, communications arrangements, and responsible operating personnel. Any unresolved dependency should remain visible in the forecast explicitly.
Match handover requirements to the actual operating scope. Approved drawings, test records, operating instructions, training, and emergency arrangements should support the equipment being placed into service.
This readiness review provides a defensible go-or-no-go decision. It also helps prevent premature energization commitments from creating avoidable standby costs, repeated mobilization, and stakeholder disputes.
Protect the date by managing readiness across interfaces
The recurring causes of commissioning delays in GIS electrical projects are disconnected engineering, incomplete site readiness, installation defects, integration failures, and approvals pursued too late.
These problems become expensive when teams discover them after dependent activities have started. Early interface reviews and evidence-based readiness checks reduce that exposure throughout delivery.
For project leaders, the practical priority is to identify the next energization blocker, assign ownership, and verify closure against agreed technical and operational acceptance requirements.
A reliable commissioning date follows from coordinated readiness across equipment, protection, controls, documentation, and network operations. Installation progress alone cannot establish whether the project is ready.
