Product Description

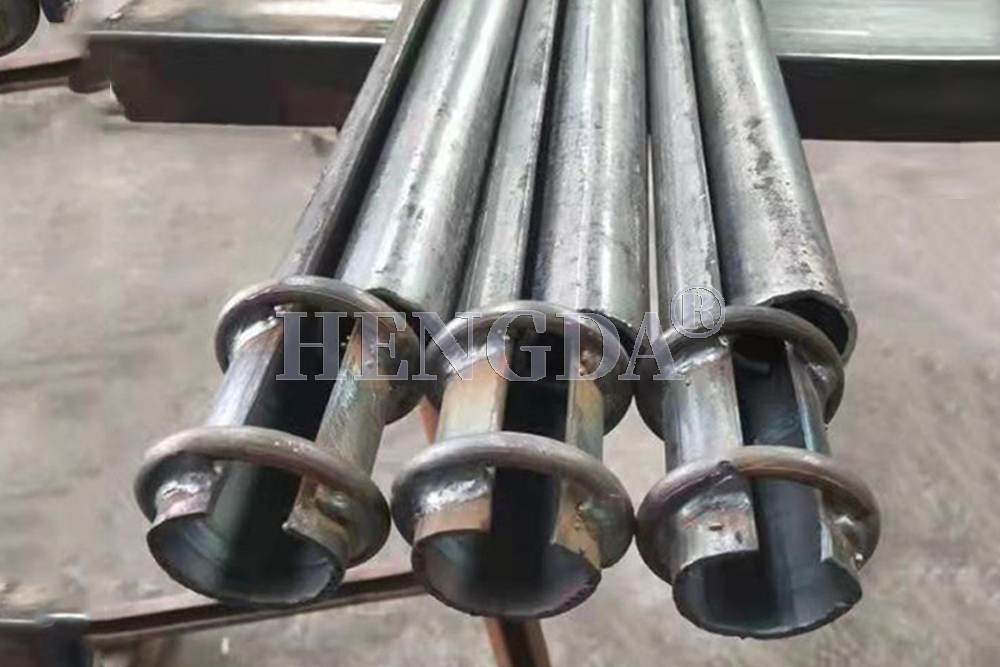

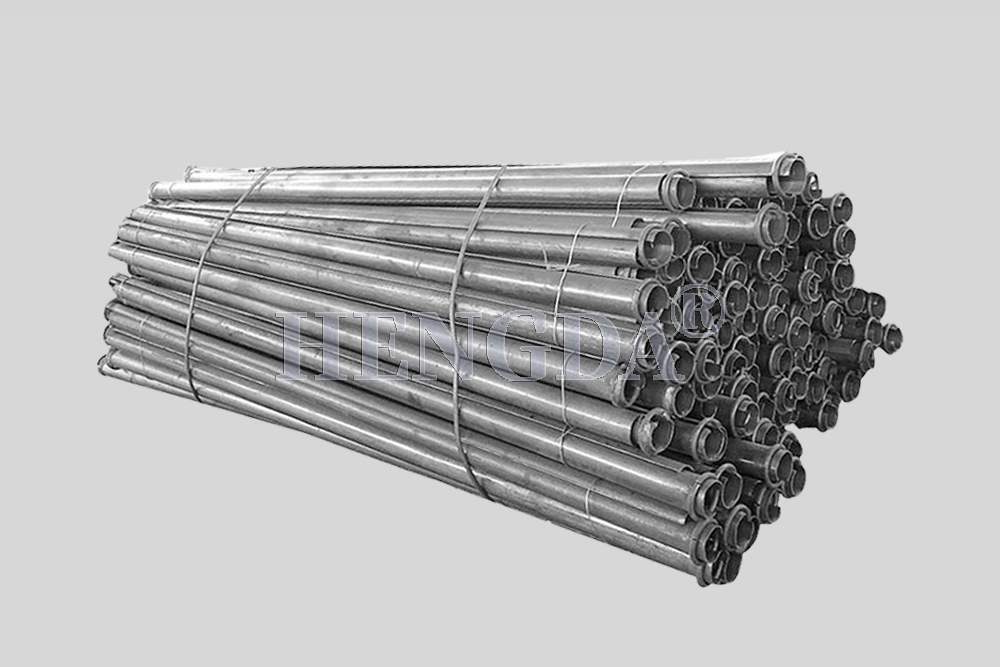

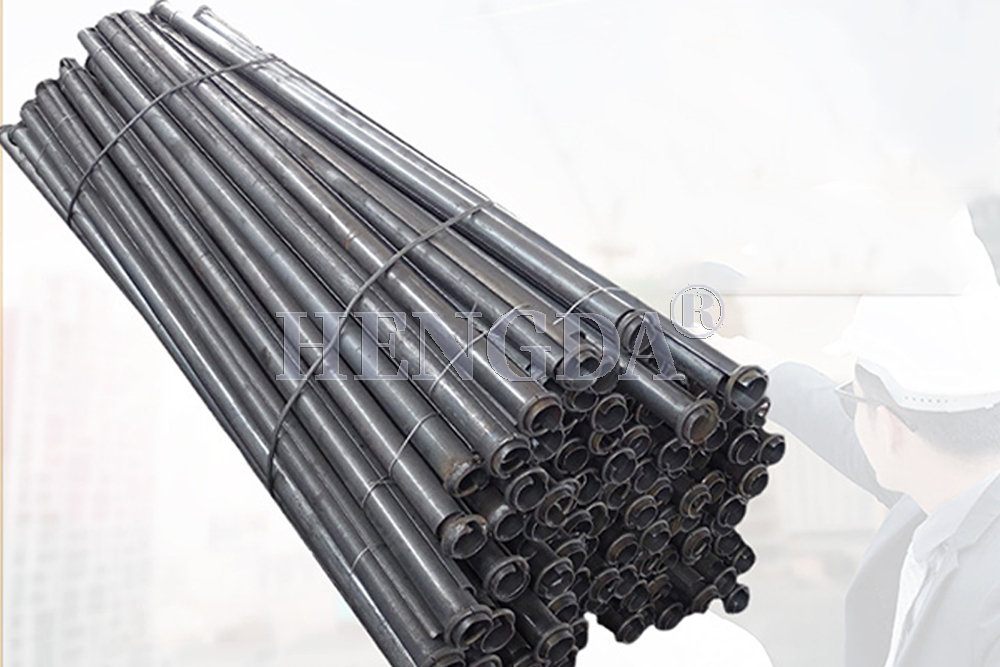

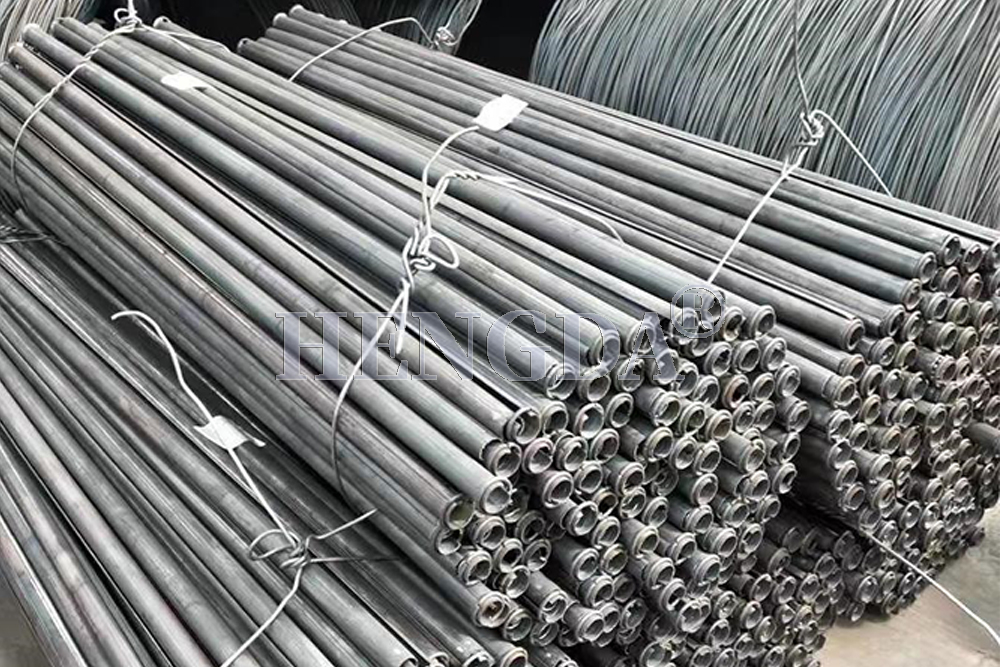

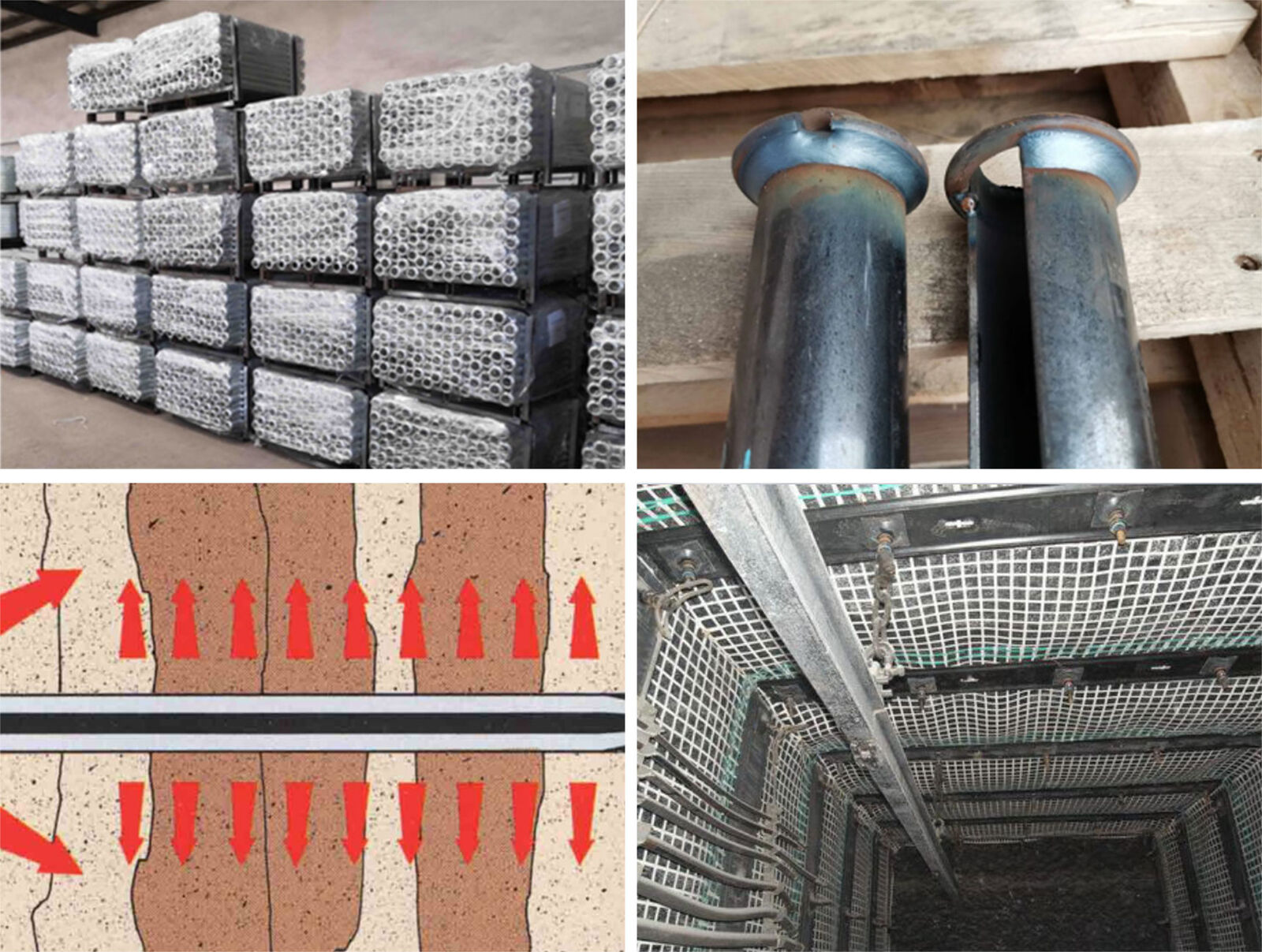

The Split Set stabilizer is a slotted steel tube,with one end tapered for easy insertion into a drill hole. The other end has a welded ring flange to hold the bearing plate.The stabilizer is inserted into a hole slightly smaller in diameter than the tube, using a simple driver tool fitted to the drill. As the tube enters, its diameter is compressed and the slot partially closes. This exerts radial forces along the length of contact with the rock, providing the friction which holds the rock together. The driving force of the drill actively loads the bearing plate against the rock.
Specifications:

Diameter

Length

Thickness

Dome plate

39mm

450mm

2.0mm,2.3mm,2.5mm,2.8mm,3.0mm

125×125×4mm

150×150×4mm

600mm

900mm

1200mm

1500mm

1680mm

1800mm

2100mm

2400mm

2700mm

3000mm


SS-39 Domed Plate

Standard

Galvanized

Dimensions mm

Weight Kg

Weight Kg

150 x 150 x 4

0.7

0.8


SS-39 drivers standard

Shank size(mm)

Weight (kg)

Short-nose

22×108

1.3

Short-nose

25×108

1.4

Long-nose

22×108

1.5

Long-nose

25×108

1.6


SS-39 drivers Rope-threaded

Steel Size(mm)

Weight (kg)


25

1.1

32

1

28

0.9
