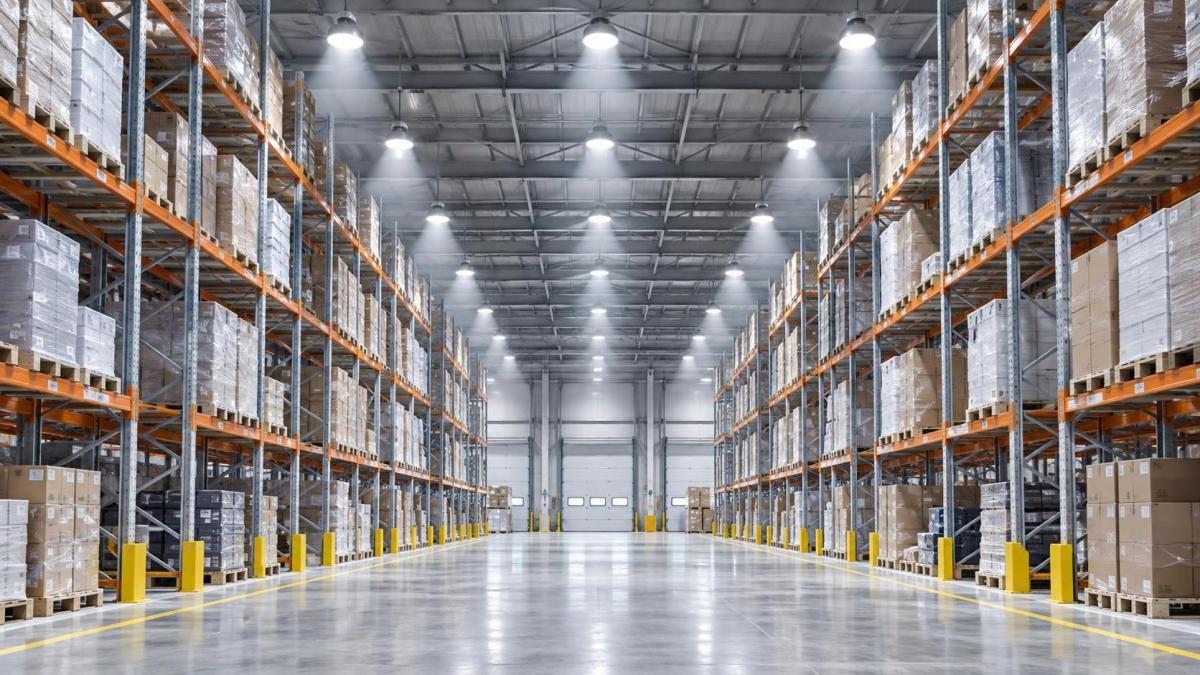

How to size a commercial high bay light for a warehouse ceiling

Warehouse high bay lighting should be sized from the working plane upward: define the illuminance required where people and equipment operate, then account for mounting height, beam distribution, spacing, surface reflectance, obstructions, and maintenance losses. Selecting by wattage alone is a common source of underlit aisles, glare at pick locations, excessive energy use, and expensive corrections after commissioning.

For a project manager, the first practical decision is whether the warehouse needs a uniform open-area lighting layout or a layout tuned to aisles, racks, loading zones, and task stations. A commercial high bay light that performs well over an open floor may produce poor vertical visibility between tall storage racks. Conversely, installing a high-output fixture everywhere to compensate for difficult areas can raise connected load and create glare without solving the underlying distribution problem.

Start with the light level at the task, not the fixture output

The lighting target should reflect the work being done on the floor and at the rack face. General bulk storage, active pallet handling, order picking, packing, inspection, and maintenance do not impose the same visual demands. A forklift route may function at a lower horizontal light level than a picking location where workers must distinguish labels, barcodes, damaged packaging, and small parts.

That distinction matters because “average lux” can conceal weak points. A layout may achieve a respectable average reading across the warehouse while leaving the lower rack levels, aisle intersections, or worktables too dim. For operational spaces, project teams should establish both an average target and a minimum acceptable light level in critical work areas. The appropriate values should be set against the governing workplace, safety, customer, insurer, or local building requirements for the specific facility.

It is also important to identify the measurement plane before evaluating a lighting proposal. In open storage areas, the relevant plane may be near floor level. At packing benches or assembly zones, it is normally the work surface. In narrow-aisle warehouses, vertical illumination on rack labels and load faces may deserve as much attention as horizontal illumination on the floor.

• Bulk storage and circulation: prioritize safe movement, obstacle recognition, and consistent coverage at floor level.
• Picking and replenishment aisles: assess illumination along the aisle and on vertical rack faces, particularly at lower and middle picking levels.
• Packing, inspection, and value-added work: model the actual work plane and consider color quality, glare control, and shadowing from equipment.
• Loading docks and transition zones: account for the visual adaptation required when operators move between bright exterior conditions and indoor lighting.

A stated lumen package is therefore only an input. It cannot, by itself, demonstrate that the warehouse receives usable light at the places where work occurs.

Mounting height determines the starting range, but optics determine whether it works

High bay fixtures are generally used where the mounting height is substantial enough that low-bay products become impractical. Once the ceiling height and mounting elevation are known, the next question is the distance from the luminaire to the task plane. This distance, rather than the nominal building height, governs how much light spreads before reaching the work area.

A fixture mounted beneath roof trusses, ducts, or sprinkler services may be closer to the floor than the ceiling drawing suggests. In a racked warehouse, the effective geometry also changes across the site: a light above a cross-aisle can have an unobstructed path to the floor, while a light above a storage aisle must deliver light through a constrained corridor between rack rows.

As mounting height increases, a fixture needs enough output and an appropriate beam pattern to maintain the desired illuminance. But simply moving to a higher wattage unit is not always the right response. A wide beam may spread too much light beyond the useful area, while an overly narrow beam can create pronounced bright and dark bands, especially if fixture spacing is not adjusted.

For open storage floors, broad distribution can provide efficient and even coverage when fixtures are arranged on a regular grid. For rack aisles, an aisle-oriented or narrower distribution may direct more of the light along the travel and picking path. The lighting plan must show how the photometric distribution corresponds to the actual rack orientation. A generic square-grid calculation is not sufficient evidence for a narrow-aisle layout.

Fixture spacing is closely linked to distribution. If the spacing is too wide for the mounting height and beam pattern, light levels fall between fittings and at the ends of aisles. If the spacing is too tight, overlap can create unnecessary brightness directly below luminaires, higher glare, and avoidable installed cost. The layout should be evaluated as a system of mounting height, lumen output, optics, and spacing rather than as a list of interchangeable fixtures.

Use a lighting calculation that reflects the warehouse, not an empty box

A credible design calculation begins with the warehouse geometry: length, width, clear height, rack height, aisle width, bay spacing, and the location of docks, offices, conveyors, work cells, and equipment. It should also identify luminaires that will be mounted on different elevations or affected by structural members.

Reflectance assumptions deserve scrutiny. Light-colored ceilings and walls can improve overall brightness by reflecting light back into the space. Dark roof decks, black racking, unpainted steel, dusty surfaces, and stored goods can absorb a significant share of the light that a simplified model expects to recover. A proposed layout based on generous reflectance values may look acceptable in software yet perform less evenly after installation.

Obstructions have a similar effect. Tall racks block lateral light, cranes and conveyors introduce shadows, and large duct runs can interrupt fixture placement. The issue is not limited to total lux. Workers need visual continuity as they move through aisles and approach intersections. A single shadowed crossing or dim label zone can have a disproportionate impact on safety and productivity.

Ask the design team or supplier to provide a calculation report that identifies the following clearly:

• Mounting height and luminaire orientation for every fixture group.
• The photometric file used for the selected optic, rather than a substitute distribution.
• Average and minimum illuminance on the relevant horizontal and vertical planes.
• Point-by-point grids that expose dark spots rather than only summary averages.
• Assumed ceiling, wall, floor, and rack reflectances.
• Maintenance factors and the basis for those assumptions.
• Separate treatment of operational zones with different tasks or mounting conditions.

Point-by-point results are especially useful during procurement review. They make it possible to compare two proposals that claim a similar average light level but achieve it in very different ways. One design may have a tighter distribution and stronger minimum values; another may rely on high readings immediately beneath fixtures to lift the average. Those alternatives can feel very different to warehouse personnel.

Account for light loss before selecting a nominal wattage

New fixtures are at their brightest when first installed. Warehouse lighting must be sized for maintained performance, not just initial output. Lumen depreciation over operating life, dirt accumulation on lenses and reflectors, ambient temperature, driver performance, voltage conditions, and cleaning intervals all affect the light available at the task plane.

The practical tool is a maintenance factor, sometimes incorporated in design software as a light-loss factor. It reduces initial calculated illuminance to a maintained value. A proposal that omits this adjustment may appear less expensive because it uses fewer luminaires or lower-output products, but it can fall below the required lighting level well before the system reaches the end of its useful service life.

The correct factor is site-specific. Clean, conditioned storage with a disciplined maintenance program has different exposure from a facility handling powders, cardboard dust, moisture, vehicle exhaust, or airborne contaminants. In difficult environments, fixture ingress protection, lens construction, thermal design, and access for cleaning can affect performance as much as the initial photometric calculation.

Ambient temperature also requires attention. High-temperature roof spaces can reduce LED output or shorten component life if the fixture is not rated for the operating condition. Cold-storage facilities introduce a different set of constraints, including start-up behavior, condensation risk, cable and sealing requirements, and the economics of maintenance access. The data sheet should be checked against the actual ambient range at the mounting location, not the temperature in an office or at floor level.

Glare, color, and controls can change the usable result

High output at a high mounting point can still create uncomfortable glare. This is most apparent where workers look upward to locate pallet positions, operate lifting equipment, scan inventory, or inspect elevated loads. Drivers can also experience glare when a fixture is positioned near the sightline at an aisle end or dock opening.

Glare control is influenced by fixture luminance, lens or reflector design, mounting height, aim angle, fixture spacing, and the contrast between the luminaire and its surroundings. A shallow, exposed high bay can produce a harsh visual impression even where the calculated floor lux is adequate. The design review should include rendered views or glare information where available, along with a check of expected sightlines from forklift cabs and picking positions.

Color temperature and color rendering should be chosen for the operational environment rather than treated as cosmetic options. Neutral or cooler white light is often selected for warehouse visibility, but the preferred appearance can vary with the type of goods, shift pattern, and adjacent work areas. Color rendering becomes more significant where workers must distinguish colored labels, wiring, product condition, or safety markings. A reasonable color-rendering specification should be set early, since it can affect efficacy, fixture choice, and budget.

Controls should be sized with the operating profile in mind. Continuous, multi-shift fulfillment operations may benefit less from simple occupancy control than intermittently used storage zones. Aisles, ancillary rooms, maintenance areas, and spaces with daylight contribution may justify different control strategies. However, aggressive sensor timeouts can be disruptive in slow-moving aisles or areas where personnel work at a stationary location. Control zoning should follow how the space is used, and emergency lighting requirements must remain independent of energy-saving settings.

Compare proposals on installed performance and operating risk

When competing offers list different wattages, fixture counts, and efficiencies, the comparison should be normalized around maintained delivered light and layout quality. A lower-wattage commercial high bay light may be a sound choice when its optical control and spacing produce the required maintained levels. A higher-wattage fixture can be justified where mounting height, dark finishes, task demands, or difficult geometry require it. Neither option can be judged from the wattage label.

Electrical review should extend beyond annual energy estimates. Large LED lighting installations can have meaningful inrush current, especially when many fixtures switch simultaneously. Circuit design, contactors, protective devices, control relays, and emergency power arrangements should be assessed against the selected equipment’s published electrical characteristics. A lighting package that appears efficient at steady state can still create commissioning or reliability issues if switching behavior has not been coordinated with the electrical system.

Serviceability is another area where low initial cost can become misleading. Fixture life claims do not eliminate the need to plan for drivers, sensors, controls, damage, and occasional early failures. The project should establish who owns spare parts, whether replacement components will remain available, how warranty service is handled, and what access equipment is needed above racks and active inventory. In high-ceiling facilities, one service visit can cost more than a meaningful portion of the fixture price difference.

A practical sizing sequence for project decisions

A reliable process is straightforward, provided it is followed in the right order. First, divide the warehouse into zones by task and geometry. Second, set the target maintained lighting levels and any vertical-illumination or glare requirements. Third, confirm mounting heights, obstructions, reflectance conditions, and rack layouts. Fourth, evaluate fixture distributions and layouts through a point-by-point calculation. Finally, compare maintained performance, electrical load, controls, warranty support, and access requirements before approving a bill of materials.

The rack plan should be treated as a live design input. If aisle orientation, rack height, or storage density changes after the lighting layout is frozen, the calculation may no longer describe the installed space. Coordination between warehouse planning, structural, electrical, and operations teams is particularly important before ordering fixtures.

The best-sized system is rarely the one with the highest lumen package or the lowest fixture count. It is the one that delivers stable, usable illumination at the relevant task locations for the expected life of the warehouse, while keeping glare, maintenance exposure, and electrical complexity proportionate to the operation.
