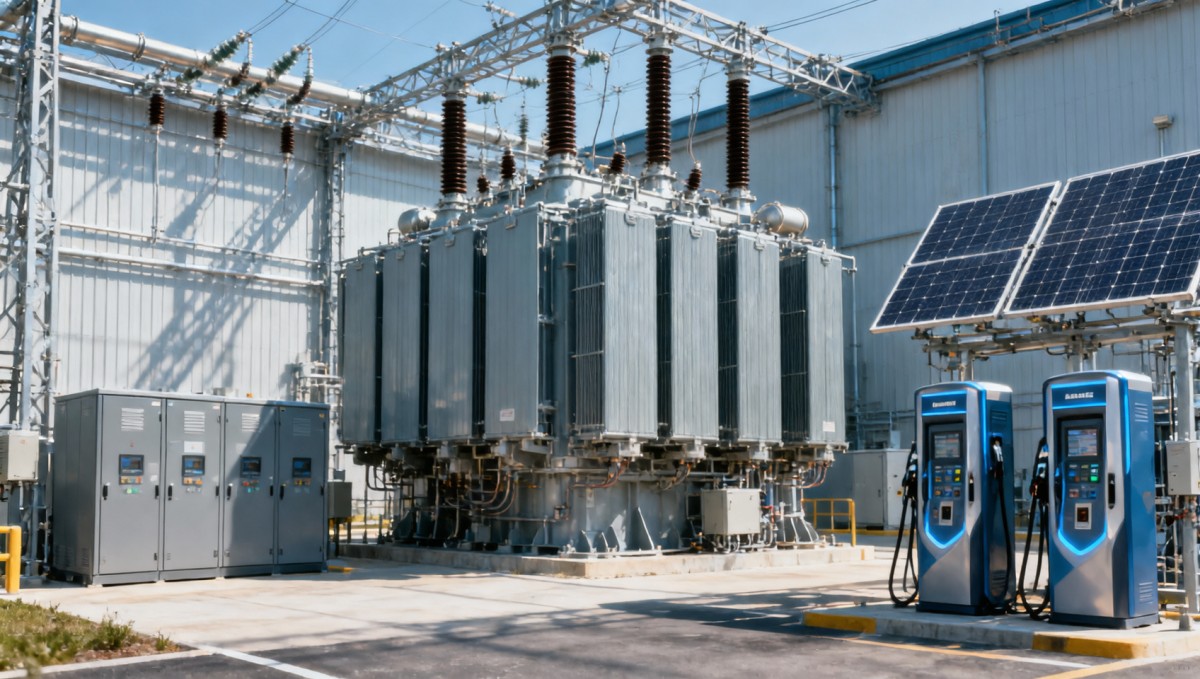

Power transformers and load growth: where failures start

As load growth accelerates across utility scale networks, power transformers are becoming a critical point where hidden failures begin. From Renewable Integration and Battery Storage to Fast Charging and liquid cooling ESS, rising demand is reshaping Grid Stability and Grid Resilience. This article examines how stress builds inside essential Energy Hardware and why early insight matters for operators and technical researchers alike.

For utilities, EPC contractors, microgrid operators, and technical researchers, the issue is no longer whether transformer loading will rise, but how quickly asset risk will compound when grid expansion, distributed generation, and high-cycle demand arrive at the same substation. In many networks, nameplate capacity still looks adequate on paper, yet thermal aging, harmonic distortion, insulation fatigue, and cooling constraints are already shortening service life.

A power transformer rarely fails from a single dramatic event. More often, failure starts with small deviations: a persistent 8% to 15% overload during peak hours, repeated tap changer operations, elevated top-oil temperature, moisture ingress, or a mismatch between design assumptions and today’s actual load profile. These conditions are especially relevant in systems integrating PV, ESS, EV charging infrastructure, and smart grid controls.

For decision-makers who rely on verifiable engineering logic, the practical question is where to look first. The answer lies in understanding how load growth changes transformer stress patterns, what early indicators deserve monitoring, and which mitigation steps can be deployed before an outage turns into a costly replacement cycle that may take 20 to 52 weeks to resolve.

Why load growth changes transformer failure patterns

Load growth used to be relatively linear in many transmission and distribution systems. Today, it is often abrupt, clustered, and less predictable. A feeder that once experienced modest seasonal peaks may now face concentrated evening EV charging, daytime PV backfeed, and rapid ESS charge-discharge swings within the same 24-hour cycle. That shift creates a very different thermal and electrical environment inside a power transformer.

The first failure pattern is accelerated insulation aging. Cellulose insulation life is strongly linked to hotspot temperature. Even a sustained rise of 6°C to 8°C above expected operating conditions can materially reduce insulation life over time. When repeated overload events occur 3 to 5 days per week, apparent short-term survivability can mask a long-term loss of dielectric margin.

The second pattern is cooling system underperformance. Many legacy units were designed around more stable demand curves. When a transformer sees sharp load ramps, pumps, fans, and radiators may operate more frequently, and cooling controls may cycle harder. In oil-immersed transformers, elevated top-oil and winding hotspot temperatures can appear long before operators observe any visible external issue.

The third pattern is electrical stress from harmonics and power electronics. Fast charging systems, inverter-based renewable assets, and some industrial drives can introduce harmonic content that increases eddy current loss and stray loss. This matters because a transformer operating at 85% apparent loading under distorted conditions may experience thermal stress closer to a much higher effective burden.

Operators should also note the cumulative effect of mechanical stress. Frequent through-faults, switching events, and tap changing under volatile load conditions can degrade contacts, lead connections, and winding clamping structures. The initial symptoms may be subtle: higher dissolved gas activity, shifting thermal trends, or increased acoustic vibration during peak periods.

Common stress drivers in modern grids

• EV charging clusters that create 2-hour to 4-hour demand spikes at commercial and transit nodes.
• PV-heavy feeders with reverse power flow during midday and steep ramp-up after sunset.
• Battery energy storage dispatch cycles that increase transformer loading frequency beyond original assumptions.
• Industrial electrification projects that add large step loads without full transformer thermal reassessment.

Key implication for technical planning

The practical implication is simple: capacity planning based only on annual peak demand is no longer enough. Utilities and infrastructure operators need hourly or sub-hourly load analysis, thermal modeling, and asset condition tracking. In many cases, a transformer with 10 to 15 years of remaining paper life under old assumptions may have far less margin under electrification-driven duty cycles.

Where hidden failures usually begin inside a power transformer

Most hidden failures start in areas that are difficult to inspect directly during normal service. Winding hotspots, insulation moisture accumulation, oil degradation, and on-load tap changer wear develop progressively. Because these mechanisms interact, a transformer can remain in operation while its internal condition deteriorates across several indicators at once.

Hotspot stress is often the earliest silent problem. A transformer may show acceptable average oil temperature, yet still develop localized winding hotspots due to uneven loading, harmonic currents, or impaired cooling flow. That is why hotspot models, fiber optic sensing in selected designs, or validated thermal estimation methods are increasingly valuable for utility-scale risk assessment.

Moisture is another critical failure catalyst. Water content in paper insulation dramatically affects dielectric strength and aging rate. In practical terms, even a modest increase in moisture can worsen bubble formation risk during overload events. Combined with elevated temperatures above 110°C at the hotspot, this can move a unit from manageable aging into a more serious failure window.

Tap changers deserve equal attention. In load-growth scenarios, voltage regulation actions can increase significantly, especially where PV variability, feeder voltage constraints, and fast load changes coexist. More operations mean more contact wear, carbonization, and maintenance demand. In many transformer failure investigations, the tap changer is not the only issue, but it is often where the first operational instability becomes visible.

Typical early failure zones and symptoms

The table below summarizes where hidden failures commonly start, what usually drives them, and which field indicators are most useful before a major outage occurs.

The key conclusion is that hidden failures rarely belong to a single subsystem. Thermal, dielectric, and mechanical stresses reinforce each other. For that reason, operators should avoid evaluating transformer health from one data point alone. A more reliable approach combines loading history, temperature profile, oil analysis, cooling system performance, and tap changer activity.

Why ESS and fast charging make diagnosis harder

Battery storage and ultra-fast DC charging can create short-duration but repeated stress pulses. These events may not always push average daily loading above alarm thresholds, yet they can increase aging per cycle. A substation transformer exposed to multiple 15-minute peaks above its preferred thermal envelope may accumulate damage faster than a unit with steadier loading at a similar daily energy throughput.

Monitoring metrics that reveal failure before outage occurs

Early visibility depends on selecting the right metrics and collecting them at the right frequency. Monthly inspection alone is often insufficient where load growth is driven by renewable integration, EV charging expansion, and flexible storage dispatch. Many networks now benefit from combining SCADA data, online monitoring, thermal models, and periodic laboratory testing into one asset health workflow.

A practical baseline includes top-oil temperature, winding hotspot estimate, load factor, ambient conditions, and cooling equipment status. Where risk is elevated, dissolved gas analysis trends, moisture-in-oil assessment, and tap changer operation counts become more valuable. Trending matters more than isolated values. A 3-month increase in gas generation or a steady rise in thermal deviation can be more meaningful than a one-time alarm.

For operators, the challenge is prioritization. Not every transformer requires the same instrumentation depth. A common strategy is to classify assets into three tiers: critical backbone units, constrained capacity nodes, and standard service assets. This lets teams allocate online monitoring budgets where outage impact, replacement lead time, or loading volatility is highest.

The timing of measurement also matters. If fast charging demand spikes occur between 18:00 and 22:00, or ESS dispatch regularly shifts at market settlement intervals, snapshots taken outside those windows will understate stress. Monitoring should align with actual duty cycle patterns rather than administrative reporting schedules.

Recommended monitoring framework

The table below outlines a practical monitoring matrix for networks facing moderate to high load growth.

This framework helps operators move from reactive maintenance to risk-based intervention. The most effective programs establish thresholds at three levels: observation, engineering review, and corrective action. That structure is especially useful when replacement lead times exceed 6 months and spare transformer availability is limited.

Four practical checks for researchers and operators

1. Compare real hourly loading to the design assumptions used in the original thermal study.
2. Check whether inverter-rich loads are increasing harmonic-related losses beyond expected values.
3. Review whether cooling stages activate at the intended temperature thresholds and operate reliably.
4. Align oil analysis and tap changer maintenance intervals with actual duty cycle, not legacy calendar practice.

How to reduce risk when renewable integration and electrification expand quickly

Risk reduction begins with accepting that transformer stress cannot be solved by one action alone. In fast-growing networks, the best results usually come from a layered response: reassess loading, improve visibility, optimize operating strategy, and upgrade equipment only where the data justifies it. This prevents both underreaction and unnecessary capital spend.

The first layer is operational optimization. Peak shaving with ESS, managed EV charging, and feeder reconfiguration can reduce transformer thermal exposure without immediate hardware replacement. Even a 10% reduction in coincident peak during the hottest part of the day can materially improve thermal margin for constrained assets. However, this only works if dispatch rules reflect transformer limits, not just market or energy targets.

The second layer is targeted retrofit and maintenance. Cooling system refurbishment, bushing checks, oil processing, tap changer servicing, and sensor upgrades often deliver faster value than full replacement. For mid-life units, these actions can stabilize performance while planners evaluate whether load growth is temporary, seasonal, or structurally permanent over the next 3 to 7 years.

The third layer is strategic replacement or capacity augmentation. If a transformer is repeatedly operating near its thermal ceiling, and the local network also expects additional PV, battery, or charging infrastructure, deferral may become more expensive than proactive investment. Long-lead equipment planning should begin early, especially where procurement, factory testing, logistics, and site outage coordination can extend total project time well beyond 30 weeks.

Decision factors for mitigation strategy

The comparison below helps identify when monitoring, retrofit, or replacement is the more appropriate path.

A useful rule for planners is to match the response to the growth horizon. If demand pressure is likely to persist for 5 years or more, temporary operational fixes should support, not replace, capital planning. If the growth profile is uncertain, monitoring and staged intervention can reduce the risk of overbuilding.

Common mistakes to avoid

• Treating transformer loading as a single peak number instead of a time-based thermal profile.
• Assuming renewable generation always relieves stress when voltage regulation and reverse flow may increase operations.
• Using static maintenance intervals despite major changes in tap changer duty or cooling runtime.
• Delaying procurement until failure risk is obvious, even though replacement lead times may exceed one planning season.

Procurement, research, and field questions that shape better decisions

For information researchers and field operators, buying or specifying transformer-related solutions should not begin with equipment brochures alone. The better starting point is a decision framework: expected load growth, duty cycle variability, cooling margin, harmonic environment, maintenance capability, and outage consequences. These six dimensions often determine whether a network needs more data, better operating logic, or new hardware.

Procurement teams should also evaluate interoperability. A monitoring package that cannot exchange data with existing SCADA, asset management, or substation automation systems may create more manual work than insight. In contrast, a technically modest solution that integrates cleanly and supports trending over 12 to 24 months can deliver stronger decision value.

For technical researchers, cross-sector context is increasingly important. Transformer failures should not be assessed in isolation from PV generation patterns, ESS dispatch logic, EV charging growth, or smart grid control schemes. These adjacent systems influence how and when transformer stress accumulates. That is why data transparency across energy hardware categories has become a strategic advantage in infrastructure planning.

A disciplined evaluation process usually works best in four steps: establish the real operating profile, identify failure exposure, compare intervention options, and align the response with replacement lead time and budget reality. This sequence helps organizations make practical decisions without overstating risk or missing hidden deterioration.

FAQ for operators and technical researchers

How do I know whether load growth is already damaging a transformer?

Start by comparing the last 6 to 12 months of hourly loading against historical patterns and thermal assumptions. If peak duration is increasing, cooling stages run more often, or oil and gas trends are shifting, hidden damage may already be developing even without trips or visible alarms.

Which assets need online monitoring first?

Prioritize transformers that meet at least two of these conditions: high outage consequence, limited spare availability, repeated high loading, integration of ESS or fast charging, and aging insulation profile. Critical nodes with replacement lead times above 20 weeks usually justify earlier monitoring investment.

Can battery storage reduce transformer failures?

Yes, but only if dispatch strategy is designed to reduce transformer thermal stress rather than simply optimize energy arbitrage. Peak shaving, ramp smoothing, and voltage support can lower overload frequency, while poorly timed charging can add stress instead of relieving it.

What should be checked before deciding on replacement?

Review four categories: current condition, future demand, operational flexibility, and procurement timeline. If the transformer is aging rapidly, local electrification is accelerating, and flexible load control cannot protect thermal margin, replacement planning should begin before failure indicators become severe.

Power transformers sit at the intersection of grid growth and grid vulnerability. As renewable integration, energy storage, EV charging, and smart grid modernization accelerate, hidden failures increasingly start with thermal stress, insulation aging, cooling limitations, and switching wear that build quietly over time. The most effective response is not guesswork, but structured visibility, engineering-led assessment, and timely intervention.

G-EPI supports utilities, EPC teams, and infrastructure operators with data-driven insight across transformers, ESS, PV, charging systems, and broader energy hardware benchmarks aligned with IEC, UL, and IEEE frameworks. If you need a clearer view of transformer risk under rising load growth, now is the right time to assess operating data, compare mitigation paths, and build a more resilient grid plan.

Contact us to discuss your load-growth scenario, request a tailored technical framework, or learn more about practical solutions for transformer reliability, grid stability, and resilient energy infrastructure.
