    Grid modernization begins to fail when utilities and operators rely on fragmented monitoring that obscures risk, slows response, and weakens Energy Resilience. In an era shaped by Electrification, Decarbonization, and the Energy Transition, unified visibility across PV Efficiency, ESS Benchmarking, and compliance with IEEE Compliance, UL Certification, and IEC Standards is essential for building smarter, more reliable power infrastructure.

    For information researchers, plant operators, EPC teams, and microgrid managers, the issue is no longer whether to monitor assets, but how to connect data from substations, PV arrays, battery systems, EV charging nodes, transformers, and control rooms into one operational picture. When visibility is split across 5 to 10 separate platforms, alarms arrive late, maintenance becomes reactive, and root-cause analysis can take hours instead of minutes.

    Global Energy & Power Infrastructure (G-EPI) addresses this challenge by treating data transparency as a technical requirement, not a reporting feature. Across Solar PV, Energy Storage Systems, EV Charging Infrastructure, Smart Grid & Transformers, and Hydrogen & Green Fuel Tech, the practical goal is the same: reduce blind spots, improve response speed, and align equipment performance with IEC, UL, and IEEE expectations.

    This article explains why fragmented monitoring undermines grid modernization, what unified observability should include, how operators can evaluate architectures, and which implementation steps create measurable gains in reliability, compliance, and operational efficiency.

    Why Fragmented Monitoring Becomes a Systemic Grid Risk

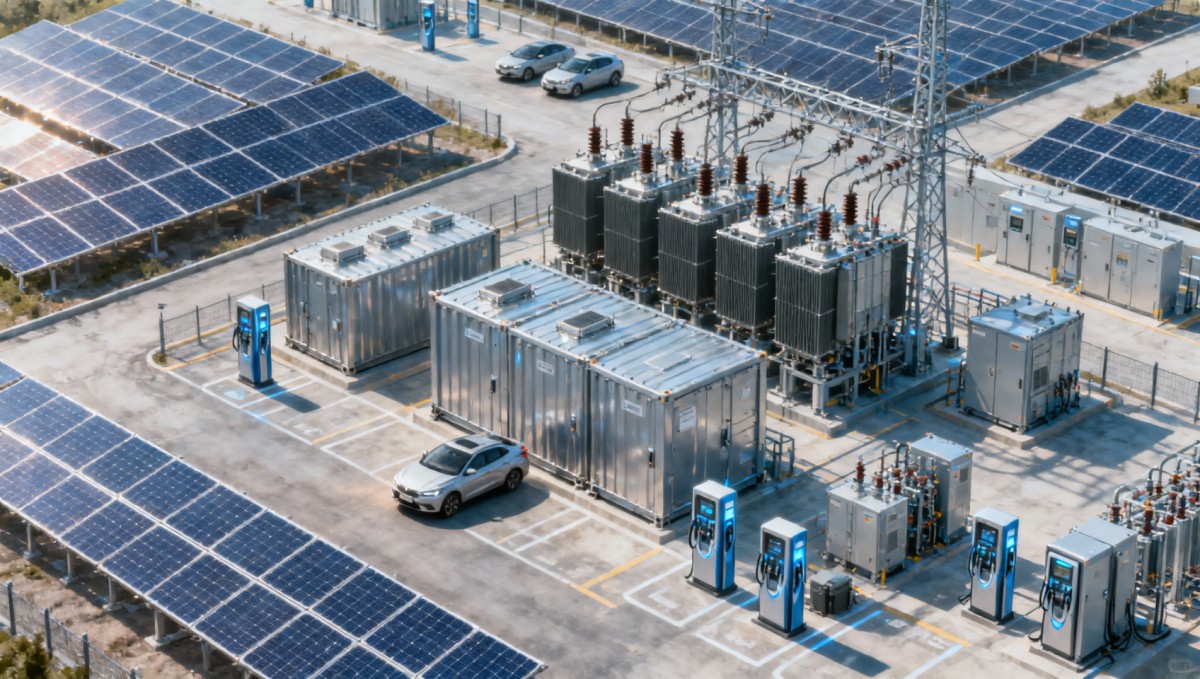

    Grid Modernization Starts Failing When Monitoring Stays Fragmented

    Fragmented monitoring usually starts as a procurement convenience. A utility buys one dashboard for PV inverters, another for battery management, a SCADA extension for transformers, and a separate application for EV charging. Each tool may work well in isolation, but once a site exceeds 3 major asset classes or spans more than 2 substations, data inconsistency begins to affect operational decisions.

    The first failure point is alarm context. A transformer temperature alert, a battery rack imbalance warning, and a PV string underperformance event may appear unrelated when seen in separate systems. In practice, they can be linked by feeder instability, harmonics, or dispatch errors. If operators need 20 to 40 minutes to compare logs manually, outage duration and asset stress both increase.

    The second failure point is data timing. Some systems refresh every 1 to 5 seconds, while others report in 15-minute or even hourly intervals. That mismatch creates false confidence. An operator may see stable power quality on one screen while an ESS controller is already throttling due to thermal conditions. Modern grid infrastructure cannot be managed safely if telemetry intervals vary without synchronization rules.

    A third problem is organizational. Operations teams, compliance managers, and planners often work from different data sets. This leads to maintenance duplication, reporting disputes, and delayed audits. For large energy portfolios, even a 2% to 4% gap between field data and reporting data can distort availability calculations, warranty claims, and lifecycle planning.

    How fragmentation shows up in daily operations

    Operators usually notice fragmentation through practical symptoms rather than architecture diagrams. Common indicators include repeated alarm storms, conflicting timestamps, different naming conventions for the same asset, and difficulty tracing events from source to consequence across systems.

    • A single fault generates 6 to 12 alerts across separate applications, forcing manual filtering.
    • Technicians need to log into 4 or more interfaces to verify one power quality event.
    • Historical trend analysis longer than 30 days becomes incomplete because records are stored in different formats.
    • Compliance reporting requires spreadsheet consolidation instead of automated traceability.

    Typical consequences for reliability and cost

    When monitoring remains fragmented, mean time to detect may stay under 5 minutes for isolated alarms, but mean time to understand and act can expand to 30, 60, or even 90 minutes. For critical feeders or industrial microgrids, that delay affects continuity, power quality, and contractual performance. The cost is not only downtime. It also includes unnecessary truck rolls, accelerated battery degradation, and poor dispatch optimization.

    The table below compares the operational difference between fragmented and unified monitoring in typical utility-scale and commercial energy environments.

    Operational Dimension Fragmented Monitoring Unified Monitoring
    Alarm correlation Manual comparison across 3–8 platforms Central event mapping with common timestamps
    Response time Often delayed by 20–60 minutes for multi-asset events Faster triage in 5–15 minutes with shared visibility
    Compliance evidence Exported manually from separate tools Consolidated logs aligned to IEC, UL, IEEE workflows
    Maintenance planning Reactive, siloed by vendor or asset type Condition-based scheduling across portfolio assets

    The key takeaway is that grid modernization fails quietly before it fails visibly. A site may look digital because each subsystem has a dashboard, yet still be operationally blind because those dashboards cannot produce one trusted operating picture.

    What Unified Visibility Should Cover Across PV, ESS, EV Charging, and Smart Grid Assets

    Unified visibility is more than a single screen. It is an operating model that connects asset telemetry, event logic, compliance records, and maintenance workflows. For grid modernization projects, that model should span at least 4 layers: field devices, site control, portfolio analytics, and standards-based reporting. If one of these layers is missing, the monitoring stack remains incomplete.

    In Solar PV, operators need module- or string-level insight where practical, inverter status, weather normalization inputs, and curtailment visibility. In ESS environments, battery rack temperature, state of charge, state of health, DC bus behavior, thermal management status, and fire safety interfaces must be correlated. On the grid side, transformer loading, voltage fluctuations, protection events, and harmonics are all part of the same reliability story.

    EV charging adds another layer. Ultra-fast DC chargers can create sharp load variation within seconds, especially in depots and public charging hubs. If charger demand is monitored separately from local ESS or feeder limits, the site may either overbuild capacity or experience avoidable power quality issues. Unified monitoring helps operators balance charging speed, storage dispatch, and transformer stress in near real time.

    For data researchers and engineering evaluators, the quality of unified monitoring depends on whether performance can be benchmarked consistently. G-EPI’s approach is especially relevant here: compare equipment behavior against recognized technical frameworks rather than relying on vendor-specific dashboards alone. That includes thermal stability ranges, event logging quality, alarm granularity, and interoperability readiness.

    Core monitoring elements that should be standardized

    A practical monitoring framework should establish common tags, data retention rules, and event severity logic across all asset classes. Without this standardization, centralization turns into a large data dump instead of actionable intelligence.

    1. Timestamp synchronization within sub-second or second-level tolerance, depending on control use case.
    2. Alarm categorization into at least 3 levels: advisory, actionable, and critical.
    3. Retention periods of 12 to 36 months for trend analysis, warranty support, and audit evidence.
    4. Common asset naming conventions across PV blocks, ESS containers, transformers, and chargers.
    5. Rule-based escalation paths so field operators and engineers see the same event priorities.

    Standards alignment matters

    IEC Standards, UL Certification pathways, and IEEE Compliance expectations do not all govern the same thing, but together they shape how power assets are designed, tested, installed, and monitored. A strong monitoring architecture should make it easier to prove conformance, not harder. If logs cannot be traced, retained, and interpreted consistently, technical compliance becomes an administrative burden.

    The following table outlines what unified visibility should include by asset category in a modern energy portfolio.

    Asset Category Minimum Monitoring Scope Why It Matters
    Solar PV String/inverter output, irradiance, temperature, curtailment, fault logs Supports PV efficiency tracking and underperformance analysis
    ESS SOC, SOH, cell/rack temperatures, HVAC status, protection events Improves ESS benchmarking, safety oversight, and dispatch quality
    EV Charging Load profile, charger uptime, session data, power quality interactions Prevents feeder overload and aligns charging with site capacity
    Smart Grid & Transformers Load, temperature, voltage, harmonics, relay events, outage records Protects grid resilience and supports asset life forecasting

    When these monitoring layers are combined, operators can move from isolated status checking to coordinated energy management. That shift is central to a credible energy transition strategy, especially where distributed energy resources are increasing grid complexity.

    How to Evaluate Monitoring Architecture Before Procurement or Retrofit

    Monitoring architecture should be assessed before hardware selection is finalized, not after commissioning problems appear. In many projects, digital integration is treated as a software step at the end of the process. That is risky. The right time to evaluate observability is during design review, when communication protocols, data ownership, cybersecurity boundaries, and reporting requirements can still be aligned.

    For procurement teams and technical researchers, five criteria usually determine whether a monitoring stack will remain useful for the next 10 to 15 years. These are interoperability, timestamp integrity, data retention depth, standards mapping, and analytics readiness. A platform may offer attractive visualization, but if it cannot aggregate events from multi-vendor assets, it will not support long-term grid modernization goals.

    Operators should also distinguish between monitoring and control. A unified platform does not need to replace every local controller, but it must ingest enough high-quality data to create reliable cross-asset logic. In practice, sites with 1-second to 5-second telemetry on critical assets can support much better fault diagnosis than sites limited to 15-minute averages.

    Another practical test is data exportability. If data cannot be exported in usable formats for engineering review, warranty support, or compliance documentation, the system creates lock-in rather than transparency. This is especially important for utility-scale developers and EPC contractors who hand projects over to different owners or operators after commissioning.

    A pragmatic procurement checklist

    • Confirm support for common industrial communication methods and multi-vendor device integration.
    • Require event logs with synchronized timestamps and clear severity levels.
    • Verify whether historical data can be retained for 12, 24, or 36 months without excessive manual export.
    • Review how the platform maps operating data to IEC, UL, and IEEE documentation needs.
    • Check whether dashboards are role-based for operators, maintenance staff, and compliance teams.

    Common retrofit mistakes

    A frequent retrofit mistake is connecting every available signal without defining which signals support action. Another is keeping legacy naming structures from each vendor, which makes portfolio-wide comparison difficult. A third is failing to define data quality thresholds, such as acceptable telemetry gaps, invalid sensor readings, or communication failure rates above 1% to 3%.

    The most successful retrofit programs usually start with a 3-stage sequence: asset inventory, signal normalization, and alarm rationalization. This can often be completed in 4 to 12 weeks for a single site, depending on the number of subsystems and the state of existing documentation.

    Implementation Roadmap: From Data Silos to Operational Resilience

    Once the monitoring strategy is defined, implementation should follow a phased roadmap. Trying to unify every asset and every historical record in one step often causes delays. A better approach is to prioritize critical assets first, then expand to secondary systems. In most cases, Phase 1 should include substations, transformers, ESS, and primary PV inverters because these assets drive the highest operational risk.

    Phase 2 can expand into EV charging infrastructure, advanced weather feeds, and secondary balance-of-plant devices. Phase 3 may add predictive analytics, maintenance workflow integration, and portfolio benchmarking across multiple sites. This staged model helps teams demonstrate value within 30 to 90 days while building a stronger long-term architecture.

    Implementation success depends on governance as much as technology. Someone must own the data dictionary, alarm logic, and escalation workflow. If these responsibilities remain split between EPC, IT, and operations without clear sign-off, unified monitoring quickly becomes another fragmented process with a new interface.

    Training is equally important. Operators should know which 10 to 20 critical indicators matter most for site stability, not just how to navigate dashboards. Maintenance teams need threshold-based triggers for inspection routines, while compliance staff need traceable reports that can be exported on demand.

    Recommended rollout sequence

    1. Map all assets, communication paths, and current dashboards.
    2. Define a single asset naming and timestamp standard.
    3. Prioritize the top 15 to 30 high-impact alarms across PV, ESS, transformers, and feeders.
    4. Integrate historical and live data into one event model.
    5. Validate performance with operator drills and post-event review cycles.

    The table below shows a practical implementation framework that utilities and site operators can use when planning unified monitoring.

    Implementation Stage Typical Duration Primary Deliverable
    Assessment and asset mapping 1–3 weeks Asset list, signal inventory, communication gap review
    Integration and normalization 2–6 weeks Unified tags, synchronized timestamps, alarm logic model
    Validation and training 1–3 weeks Operator playbooks, reporting templates, drill results
    Optimization and benchmarking Ongoing every 30–90 days Performance tuning, maintenance insights, compliance support

    The most important conclusion is that implementation should produce operational discipline, not just new visuals. If event prioritization, threshold management, and cross-functional response are improved, energy resilience becomes measurable rather than aspirational.

    FAQ: Practical Questions from Researchers and Operators

    How do I know if my site has a fragmented monitoring problem?

    A site is likely fragmented if operators use 3 or more separate interfaces for routine diagnosis, if the same event appears with different timestamps, or if compliance reporting still depends on manual spreadsheet consolidation. Another sign is when post-event review takes longer than the event itself, especially for ESS, transformer, and feeder interactions.

    Which assets should be integrated first?

    Start with assets that create the largest reliability and safety impact: substations, transformers, primary PV inverters, and ESS containers or racks. These systems typically generate the most consequential alarms and have the strongest effect on availability, thermal risk, and dispatch performance. EV charging should be prioritized early where charging loads exceed local feeder flexibility.

    How much historical data should be retained?

    A practical baseline is 12 months for routine operations and at least 24 to 36 months where warranty support, degradation analysis, or regulatory review are important. High-resolution data may be stored for shorter windows, while summarized trend data can be retained longer. The right balance depends on asset criticality, storage cost, and audit requirements.

    Can unified monitoring help with compliance and benchmarking?

    Yes, provided the platform preserves traceable event logs, synchronized timestamps, and exportable records. Unified monitoring supports comparisons across assets and sites, which is essential for ESS benchmarking, PV efficiency analysis, and documenting operational alignment with IEC, UL, and IEEE-related workflows. It also reduces the reporting burden on engineering and maintenance teams.

    What role does G-EPI play in this process?

    G-EPI contributes value by providing a data-driven engineering perspective across PV, energy storage, EV charging, smart grid infrastructure, and hydrogen-related technologies. For technical buyers and operators, that means clearer benchmarking logic, better standards awareness, and more reliable decision support when comparing hardware performance, monitoring requirements, and system modernization priorities.

    Grid modernization succeeds when monitoring moves beyond isolated dashboards and becomes a coordinated operational system. Unified visibility improves fault correlation, shortens response cycles, supports better ESS and PV performance analysis, and strengthens energy resilience across increasingly complex power infrastructure.

    For utilities, EPC firms, microgrid operators, and technical researchers, the priority is clear: define a monitoring architecture that connects data quality, equipment benchmarking, and standards-based reporting from the start. That is where better uptime, safer operations, and more credible long-term planning begin.
