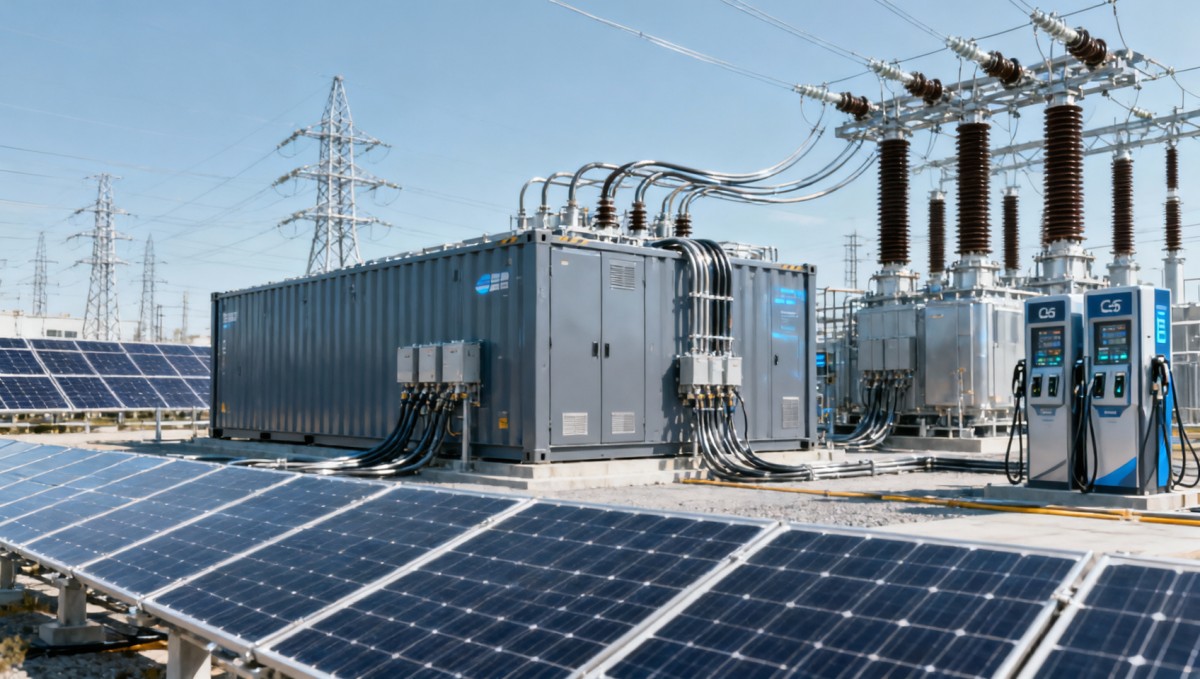

Grid stability problems that appear after new capacity comes online

When new utility scale capacity comes online, hidden weaknesses in Grid Stability can surface fast—from Renewable Integration imbalances and power transformers stress to ESS control conflicts and Battery Storage dispatch errors. For operators and researchers, understanding how liquid cooling ESS, Fast Charging loads, and critical Energy Hardware affect Grid Resilience is essential to preventing instability and ensuring reliable system performance.

This issue appears across power systems of every size, but it becomes especially visible during periods of rapid electrification, high PV penetration, and multi-point interconnection. A new 100 MW solar block, a 50 MW battery energy storage system, or a cluster of ultra-fast EV chargers can shift voltage, frequency, fault levels, and dispatch patterns within days of commissioning.

For utilities, EPC contractors, microgrid operators, and technical researchers, the challenge is not only connecting new assets. The real task is predicting how new capacity interacts with existing transformers, protection logic, feeder loading, inverter controls, and market-driven dispatch schedules. In many cases, grid instability is less about a single defective asset and more about poor coordination between otherwise compliant equipment.

A data-driven engineering approach is therefore essential. By comparing equipment behavior, control strategies, and grid-code alignment across PV, ESS, EV charging infrastructure, and smart grid hardware, operators can reduce commissioning risk, improve grid resilience, and avoid costly post-energization corrections that may take 2–12 weeks to resolve.

Why grid stability problems often emerge only after new capacity is energized

Many projects pass factory tests and pre-commissioning checks, yet instability still appears after grid connection. The reason is simple: laboratory compliance does not fully reproduce live network conditions. Once a new plant is synchronized, it starts interacting with feeder impedance, transformer tap positions, nearby industrial loads, and upstream protection settings that may have changed over the last 3–5 years.

In renewable integration scenarios, one of the first issues is dynamic imbalance. A utility-scale PV plant can ramp from 15% output to 85% output within a short irradiance window, while a battery system may simultaneously be instructed to charge due to price signals. If plant controllers, AGC signals, and local voltage regulation are not coordinated, the result may be voltage hunting, reactive power oscillation, or unnecessary transformer heating.

Another common trigger is hidden infrastructure stress. Existing power transformers and switchgear may have acceptable nameplate capacity, but real thermal margin can be narrower than expected. If a substation transformer regularly operates at 70% loading and a new energy asset adds recurring peaks that push it to 90%–105% for several hours, insulation aging and tap changer wear can accelerate quickly.

Control-layer conflict is equally important. Modern grids rely on inverter-based resources, EMS platforms, SCADA systems, relay logic, and local controllers. When firmware settings, communication delays, or response priorities are mismatched, a battery storage system may respond within 200 milliseconds while a feeder controller acts on a 2–5 second delay, creating unstable corrective loops rather than true stabilization.

Typical post-commissioning instability signals

Operators should watch for measurable signals during the first 7–30 days after energization. Early detection can prevent minor instability from becoming a recurring grid resilience problem.

• Voltage deviation repeatedly exceeding local operating limits, such as swings beyond ±5% during ramp events.
• Frequency response lag from inverter-based resources, especially where active power recovery is too slow or too aggressive.
• Transformer hotspot temperature increases of 8°C–15°C during synchronized charging or export periods.
• Unexpected battery storage dispatch reversals caused by EMS, market signals, and local protection settings acting at the same time.
• Protective relay nuisance trips during fast charging demand spikes or PV cloud-transient events.

Root causes by asset interaction type

The table below helps researchers and operators map typical instability symptoms to the asset interactions that usually cause them. This is useful during commissioning reviews, fault analysis, and procurement-stage risk screening.

A key conclusion is that grid stability problems often arise from interface behavior, not isolated equipment failure. That is why technical due diligence should include interconnection studies, dynamic model validation, and staged commissioning tests instead of relying only on component-level compliance certificates.

How PV, battery storage, and fast charging loads create new instability patterns

The energy transition is reshaping grid behavior because the newest assets are digitally controlled, power-electronic based, and highly variable. Traditional grids were built around rotating machines and more predictable demand. By contrast, high-penetration PV, liquid cooling ESS, and fast charging infrastructure can change active and reactive power profiles within seconds rather than hours.

In PV-heavy systems, cloud movement can create rapid generation ramps that are manageable at 5% penetration but problematic at 25%–40% feeder penetration. If voltage support is poorly tuned, inverters may chase setpoints, causing repetitive reactive power swings. This can shorten the life of switching equipment and trigger customer-side power quality complaints even when average energy output looks acceptable.

Battery storage adds flexibility, but it also adds control complexity. A 2-hour ESS and a 4-hour ESS may both provide peak shaving, yet their dispatch logic, ramp profiles, and SOC reserve strategies are very different. If reserve bands are too narrow, the battery may become unavailable exactly when the grid needs frequency support. If reserve bands are too wide, valuable flexibility remains unused and network congestion persists.

Fast charging creates another type of stress. A public or fleet charging site with multiple 180 kW or 300 kW chargers can impose sharp, clustered demand. Unlike industrial loads that often have stable cycles, EV charging can be stochastic. If demand management is absent, even a modest site expansion can lead to transformer overload events, feeder voltage drops, and higher harmonic distortion under partial load conditions.

Asset behavior differences operators should model

Not all new capacity affects grid resilience in the same way. The practical comparison below highlights where each technology most often introduces operational stress.

The main takeaway is that technology choice alone does not determine stability. What matters is how each asset is configured, coordinated, and monitored after connection. Systems with strong model validation and event analytics usually detect emerging instability much earlier than systems relying only on periodic manual inspections.

A practical screening checklist

1. Check whether dynamic models reflect the actual firmware version installed at site.
2. Review transformer thermal margin during the top 10 annual peak coincidence hours.
3. Verify whether ESS dispatch rules prioritize grid support, price arbitrage, or asset protection first.
4. Measure voltage and harmonic performance before and after fast charging expansion.
5. Confirm communication latency between plant controller, SCADA, EMS, and protection systems.

Engineering controls that reduce commissioning risk and improve grid resilience

The most effective response to post-connection instability is not a single hardware fix. It is a structured engineering control framework that begins before energization and continues through the first operational quarter. In practice, the first 90 days after commercial operation are often the most valuable period for tuning control logic, validating thermal assumptions, and correcting unexpected dispatch behavior.

Start with staged commissioning rather than full-load activation on day one. Bringing a 200 MWh ESS, a utility-scale PV block, or a charging hub online in phases allows operators to observe voltage response, communication reliability, and transformer loading step by step. A phased approach may take 3–7 extra days, but it can prevent weeks of troubleshooting later.

Thermal management should also be treated as a stability issue, not just an equipment issue. Liquid cooling ESS platforms generally provide tighter cell temperature control than air-cooled designs, often maintaining lower temperature spread under high cycling conditions. This improves predictable dispatch capability and reduces the chance that thermal derating will interrupt frequency response or peak support when grid stress is highest.

Another critical measure is control hierarchy alignment. Every site should clearly define which signal has final authority during conflicting conditions: local safety protection, grid support mandate, market dispatch, or operator override. Without this hierarchy, a battery system may try to follow two commands at once, while a PV controller and substation voltage regulator work against each other.

Recommended implementation sequence

For utilities and EPC teams, a repeatable implementation sequence improves both reliability and accountability. The following workflow is widely applicable across grid modernization projects.

1. Complete pre-energization model review, including protection settings, inverter controls, and transformer capacity assumptions.
2. Run staged synchronization tests at low, medium, and near-peak loading bands, typically 25%, 60%, and 90%.
3. Capture 1-second to 15-minute operational data for voltage, current, harmonics, SOC, and thermal conditions.
4. Adjust Volt/VAR, frequency-watt, and dispatch priority settings based on observed field behavior rather than default templates.
5. Reassess performance after 2–4 weeks of live operation and document a final control baseline.

Control priorities that should be documented

A strong commissioning plan should specify operating priorities in writing. This reduces ambiguity during events such as overvoltage, peak demand, communication loss, or low battery state of charge.

• Safety and protection actions must override all economic dispatch instructions.
• Grid-code compliance should rank above arbitrage when voltage or frequency is outside the normal band.
• ESS reserve capacity should be segmented, for example 10%–20% reserved for contingency support when required by system conditions.
• Fast charging demand management should trigger before transformer temperature reaches critical warning thresholds.

When these priorities are explicit, grid resilience improves because every digital control layer acts predictably. This is especially important in mixed infrastructure environments where PV, battery storage, smart transformers, and EV charging assets operate through different vendors and communication protocols.

Procurement and operations: what researchers and operators should evaluate before expansion

New capacity planning should not stop at power rating or capex comparison. In reality, procurement choices can determine whether a site remains stable at 95% availability or requires repeated intervention during high-load periods. For information researchers and field operators, the goal is to compare equipment on its real contribution to grid resilience, not just brochure specifications.

One of the most overlooked evaluation points is interoperability. A compliant inverter, transformer, or charging controller may still perform poorly if communication mapping, event logging, or dispatch interfaces are weak. Procurement teams should ask whether the equipment supports time-synchronized data, event traceability, configurable droop settings, and practical integration with existing SCADA or EMS platforms.

Lifecycle maintainability is another major factor. A technically advanced system that requires rare spare parts, specialized firmware access, or long response times can increase stability risk over a 10–15 year operating horizon. For remote sites or mission-critical industrial feeders, service response within 24–72 hours may be as important as initial efficiency performance.

Standards alignment should also be reviewed in context. Benchmarking against IEC, UL, and IEEE frameworks is valuable, but buyers still need project-specific engineering checks. For example, a component that meets international standards may still require local relay coordination studies, harmonic review, or revised transformer derating assumptions before it can operate safely on a particular network.

A practical procurement decision table

The following matrix helps decision-makers compare energy hardware and control platforms beyond headline performance. It is particularly useful when selecting PV, ESS, charging systems, or transformer-related upgrades for modernized grids.

This comparison shows why purchasing decisions must reflect operational reality. A slightly higher initial cost may be justified if it provides better tuning range, stronger diagnostics, and lower risk of post-commissioning instability. In grid modernization, the cheapest asset is not always the most economical system choice.

Common purchasing mistakes

Mistake 1: buying by nameplate only

A 5 MVA transformer, 20 MWh battery block, or 300 kW charger tells only part of the story. Buyers should also examine overload profile, ramp behavior, ambient conditions, and control flexibility.

Mistake 2: ignoring interface engineering

Projects often under-budget data integration and commissioning analytics. Yet many grid stability problems come from interfaces between equipment, not from the hardware itself.

Mistake 3: underestimating post-launch support

A stable system still needs firmware management, event review, and seasonal retuning. Support scope over the first 30, 60, and 90 days should be defined during procurement, not after problems appear.

FAQ: field questions about instability after new capacity additions

How soon do grid stability problems usually appear after a new asset goes live?

Some issues appear on day one, especially communication faults, relay miscoordination, or obvious voltage excursions. Others take 2–8 weeks to emerge because they depend on specific weather, dispatch, or charging behavior. For example, transformer overheating may only become visible during the first coincident peak or summer ambient event.

Is battery storage always a stabilizing asset?

No. Battery storage can improve grid resilience, but only if its controls, SOC strategy, and response logic are aligned with system needs. A poorly configured ESS can amplify instability through dispatch oscillation, delayed support, or unavailable reserve capacity. Operators should test at least 3 scenarios: peak discharge, low-SOC support, and communication fallback mode.

What should operators monitor during the first month?

Focus on feeder voltage, frequency response, harmonics, transformer temperature, charger demand coincidence, inverter alarms, and battery SOC behavior. A practical review interval is daily during week 1, then every 3–7 days during the first month. Event records with 1-second granularity are especially useful for diagnosing control conflicts.

How can researchers compare technologies fairly across projects?

Use a common benchmarking framework that includes thermal performance, control flexibility, standards alignment, interoperability, and field maintainability. Comparing only efficiency or power rating misses the factors that most strongly affect long-term grid stability once new capacity is online.

Grid stability problems that appear after new capacity comes online are rarely random. They usually result from a combination of renewable integration dynamics, transformer constraints, ESS control conflicts, fast charging load behavior, and insufficient visibility into how energy hardware performs in live conditions. The most resilient projects are those that treat commissioning, interoperability, and post-launch tuning as core engineering work rather than secondary tasks.

For utilities, EPC teams, researchers, and operators evaluating PV, ESS, EV charging, smart grid hardware, or transformer-related upgrades, a data-led assessment can reduce risk before instability disrupts operations. If you need deeper benchmarking, equipment evaluation support, or a more structured view of grid resilience across modern energy infrastructure, contact G-EPI to discuss your project, request a tailored technical comparison, or explore more solution-focused guidance.
