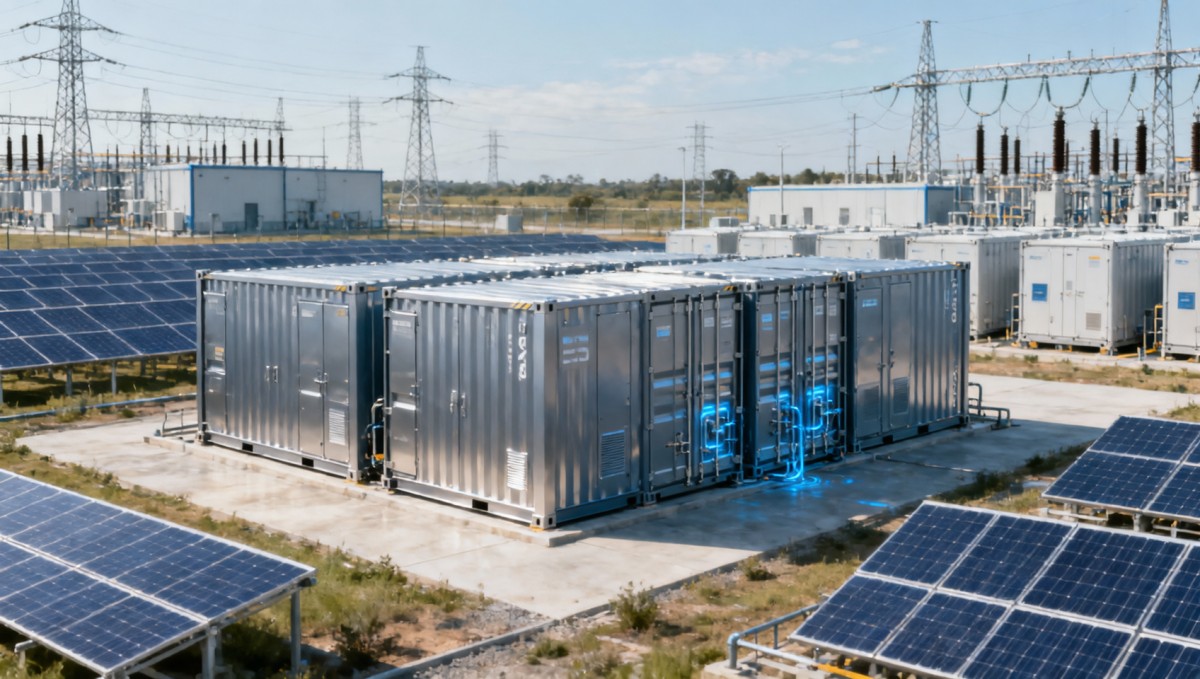

Liquid cooling ESS works well, but not in every climate

Liquid cooling ESS can improve Battery Storage performance, safety, and uptime in utility scale projects, but climate conditions often determine whether it truly supports Grid Stability and Grid Resilience. For operators and researchers evaluating Energy Hardware for Renewable Integration, understanding where liquid cooling works best—and where other ESS designs may outperform—is essential to making reliable, cost-effective infrastructure decisions.

For BESS owners, EPC teams, and site operators, the real question is not whether liquid cooling is advanced. It is whether it is climate-appropriate. A thermal management design that performs well at 25°C with moderate humidity may face a very different operating profile at -20°C, 45°C, coastal salt exposure, or high-altitude low-pressure environments.

This matters because thermal stability directly affects battery aging, usable capacity, auxiliary power consumption, maintenance intervals, and fault risk. In utility-scale and microgrid projects, a 1% to 3% difference in round-trip efficiency or a few extra hours of outage during peak demand can materially change project economics and system resilience.

Drawing on the engineering perspective used by Global Energy & Power Infrastructure (G-EPI), this article explains when liquid cooling ESS is a strong fit, where climate limits must be evaluated carefully, and how decision-makers can compare it against air-cooled and hybrid thermal architectures using practical selection criteria.

Why thermal management is central to ESS performance

Battery energy storage systems do much more than store electricity. They must charge, discharge, idle, and respond to grid commands across thousands of cycles, often over 10 to 20 years. During these operating windows, internal cell temperatures that drift too far above or below target ranges can reduce power capability, accelerate degradation, or trigger protective shutdowns.

For most lithium-ion ESS configurations, operators aim to keep cell temperatures within a relatively narrow working band, often around 15°C to 35°C, with cell-to-cell temperature variation ideally controlled within 3°C to 5°C. The tighter that thermal spread, the easier it is for the battery management system to maintain balanced performance across strings and racks.

Liquid cooling ESS is designed to improve heat transfer efficiency. Compared with conventional air cooling, it can remove heat faster and more uniformly, which is particularly useful in high-density battery containers, 2-hour to 4-hour utility storage blocks, and sites with frequent cycling. This often supports better uptime during summer peaks and heavy ancillary service dispatch.

However, thermal control is not only about removing heat. In cold climates, the system may also need to preheat batteries before charging. In humid climates, condensation control becomes critical. In dusty or remote environments, maintenance complexity matters just as much as cooling precision. That is why thermal architecture must be matched to site conditions, not selected on technology prestige alone.

Key operational variables operators should track

• Ambient temperature range across all seasons, such as -30°C to 40°C or 10°C to 45°C.
• Humidity profile, including condensation risk during day-night swings or monsoon periods.
• Cycling intensity, including 1 cycle per day versus 2 to 3 partial cycles for grid services.
• Auxiliary load budget, especially where parasitic consumption affects project ROI.
• Maintenance access, spare part lead time, and water-glycol service capability on site.

Where liquid cooling ESS performs best

Liquid cooling is usually strongest in climates and duty cycles where heat rejection is the dominant challenge. Hot regions with long summer periods above 35°C, high solar gain, and sustained dispatch often benefit from the superior thermal uniformity of liquid-cooled enclosures. In these sites, batteries can avoid the hot spots that commonly appear in densely packed air-cooled cabinets.

This approach is also valuable where land is constrained and project developers prefer higher energy density per container. A more compact 20-foot or 40-foot ESS block with higher internal heat generation can be difficult to manage with airflow alone, especially when fan paths are partially affected by dust loading, filter clogging, or uneven rack arrangement.

Another strong fit is grid applications with demanding ramp rates or frequent charge-discharge events. Frequency regulation, renewable smoothing, and peak shaving can create multiple thermal transitions each day. Liquid cooling can help limit rapid temperature swings, which supports more stable battery behavior and may reduce uneven aging over several thousand cycles.

At the system level, this can support better availability and more predictable performance modeling. For operators managing fleets across PV-plus-storage sites, fewer thermal excursions can simplify dispatch planning and lower the risk of de-rating during extreme afternoon demand periods when both battery output and grid support are most valuable.

Typical scenarios where liquid cooling is often justified

The comparison below highlights practical operating conditions where liquid cooling often creates measurable value relative to simpler thermal designs.

The common pattern is clear: where thermal load is intense, continuous, or unevenly distributed, liquid cooling can offer operational advantages. But that does not make it universally superior. The same system can become less attractive when ambient conditions shift from heat-dominant to freeze-dominant, salt-corrosive, or maintenance-limited environments.

Climate limits: when liquid cooling may not be the best choice

Liquid cooling ESS is not climate-proof by default. In very cold regions, especially where winter temperatures remain below -10°C for extended periods and can drop to -20°C or lower, the thermal management system must prevent coolant viscosity issues, maintain pump reliability, and ensure batteries are warmed sufficiently before charge acceptance. This can increase auxiliary power use and startup complexity.

In remote projects with weak maintenance support, the hydraulic loop introduces additional components such as pumps, valves, hoses, seals, heat exchangers, and coolant monitoring routines. Any one of these may be manageable in a staffed utility hub, but less so at an isolated microgrid where technician access may only be available every 30 to 60 days.

High-humidity coastal sites add another layer of risk. While air-cooled systems also face corrosion exposure, liquid-cooled systems combine electrical, mechanical, and fluid interfaces. That can raise inspection requirements, especially if enclosures face salt fog, large day-night thermal swings, and condensation episodes around dawn.

There is also a cost discipline issue. Liquid cooling can improve thermal precision, but if a project operates in a mild climate of 10°C to 28°C with low cycling intensity and easy airflow design, the extra capital and O&M burden may not produce enough value to justify the added complexity.

Main climate-related constraints

1. Freeze risk requires verified coolant formulation, low-temperature startup logic, and charge inhibit settings below defined thresholds.
2. High humidity and salt environments demand stronger sealing, corrosion-resistant materials, and more frequent inspection intervals.
3. Dust-heavy desert environments may still favor liquid cooling for heat removal, but balance-of-plant protection and radiator cleanliness become critical.
4. Remote sites with limited service capability may prefer lower-complexity air systems if downtime risk from component failure outweighs thermal benefits.

Climate comparison by thermal architecture

The table below does not rank one solution as universally better. It shows how climate, service model, and operating duty shape the decision.

For procurement teams, the lesson is practical: climate suitability is not a brochure feature. It is an engineering fit issue. Every ESS thermal design should be evaluated against seasonal temperature curves, maintenance resources, grid service profile, and auxiliary energy budget before final selection.

How to evaluate ESS cooling choices for procurement and operations

A sound ESS selection process should move beyond nameplate capacity. Operators should test whether the cooling architecture supports the actual project duty. A 100 MWh system for daily peak shifting has different thermal needs than a 20 MWh fast-response resource tied to frequency regulation or islanded backup support. Cooling design should be assessed at the application level, not only at the battery cell level.

At minimum, buyers should compare four decision layers: thermal performance, parasitic load, serviceability, and climate risk tolerance. For instance, a system that keeps temperature spread within 2°C to 3°C but consumes significantly more auxiliary power in winter may not be optimal for projects where annual energy throughput is limited or dispatch economics are thin.

It is also important to request operational detail from suppliers, not just design claims. Ask how the system behaves during startup at low temperatures, what alarms are triggered if pump performance drops, how quickly coolant loops can be serviced, and whether maintenance can be completed without taking the full container offline for long periods.

For grid resilience applications, downtime planning matters as much as thermal efficiency. If replacing a circulation pump requires specialized parts with a 4-week lead time, that risk should be valued in the same way buyers value improved thermal uniformity. Reliability is a system outcome, not a component slogan.

A practical 6-point evaluation checklist

• Confirm the annual ambient range and identify the worst 5% of operating hours.
• Match cooling design to use case: peak shifting, black start support, PV firming, or ancillary services.
• Review auxiliary power draw in both summer cooling and winter preheating conditions.
• Check service intervals for pumps, filters, coolant condition, valves, and leak detection routines.
• Verify compliance pathways against relevant IEC, UL, IEEE, and local grid interconnection requirements.
• Model outage consequences, spare part strategy, and technician availability over a 10-year lifecycle.

Questions operators should ask before signing

Request performance data at more than one ambient condition. A useful bid package should show behavior at 25°C, 40°C, and at least one low-temperature case such as 0°C or -10°C. It should also distinguish between continuous operation, startup, standby, and emergency derating conditions.

Ask for maintenance procedures in hourly terms. A response that states “easy maintenance” is not enough. Operators need to know whether routine coolant checks take 30 minutes, 2 hours, or a half day; whether the enclosure must be de-energized; and whether site crews need special tools or fluid handling protocols.

Implementation, maintenance, and common mistakes

Even a well-matched liquid cooling ESS can underperform if implementation details are weak. Commissioning should verify thermal control response under realistic charge-discharge loads, not only under idle diagnostics. In many projects, the most revealing period is the first 7 to 30 days of operation, when dispatch patterns, enclosure sealing, auxiliary loads, and ambient interactions begin to show real-world behavior.

Maintenance planning should include coolant quality checks, leak inspection, pump health monitoring, heat exchanger cleanliness, alarm response procedures, and seasonal operating logic. Depending on site conditions, inspection frequency may range from monthly visual checks to quarterly detailed service. Harsh environments often justify a tighter schedule than mild inland conditions.

A common mistake is assuming liquid cooling automatically lowers lifetime cost. It can, but only when uptime, cycle intensity, and thermal precision materially affect project revenues or avoided losses. In low-cycle systems with moderate weather, an overengineered cooling package may add complexity without enough operational return.

Another mistake is evaluating ESS only at container level and ignoring site integration. Transformer loading, PCS placement, shading, airflow around enclosures, cable trench heat, and control room temperature can all influence how effectively the thermal system performs. ESS selection should therefore be integrated with the broader smart grid and power infrastructure design.

Frequent project errors to avoid

• Using average climate data instead of seasonal extremes and worst-case operating windows.
• Ignoring auxiliary energy consumption during winter heating or summer sustained cooling.
• Underestimating spare part lead times for pumps, sensors, or coolant loop components.
• Failing to train site personnel on leak response, coolant handling, and low-temperature startup logic.
• Treating thermal management as separate from battery warranty, dispatch profile, and degradation modeling.

FAQ for researchers and operators

Is liquid cooling always safer than air cooling?

Not automatically. Safety depends on full system design, including thermal uniformity, fire detection, enclosure segregation, controls, and maintenance quality. Liquid cooling can improve temperature control, but it also adds mechanical and fluid interfaces that must be managed correctly.

What climates often favor air-cooled ESS?

Mild climates with lower cycling intensity, wider maintenance constraints, and modest heat loads can favor air-cooled systems. If ambient conditions remain moderate for most of the year and battery density is not extreme, simpler systems may provide a better total-risk profile.

How much should operators focus on auxiliary power?

A great deal. Auxiliary loads affect net delivered energy, especially in projects with tight revenue margins. Seasonal cooling and heating demands should be modeled across the full year, not estimated from a single nominal operating point.

Liquid cooling ESS can be a strong enabler of battery performance, uptime, and grid-facing reliability, especially in hot climates, high-density installations, and demanding cycling applications. But climate fit remains the deciding factor. Cold weather behavior, humidity exposure, maintenance capability, and auxiliary energy use can all change whether liquid cooling is truly the best option for long-term ESS value.

For developers, operators, and technical researchers, the most reliable path is evidence-based comparison: evaluate thermal architecture against site climate, dispatch profile, service resources, and infrastructure goals. G-EPI supports this approach by focusing on verifiable engineering criteria across ESS, PV, EV charging, smart grid, and related energy hardware domains. To discuss a project-specific selection framework or review cooling strategies for your deployment environment, contact us to get a tailored solution and deeper technical guidance.
