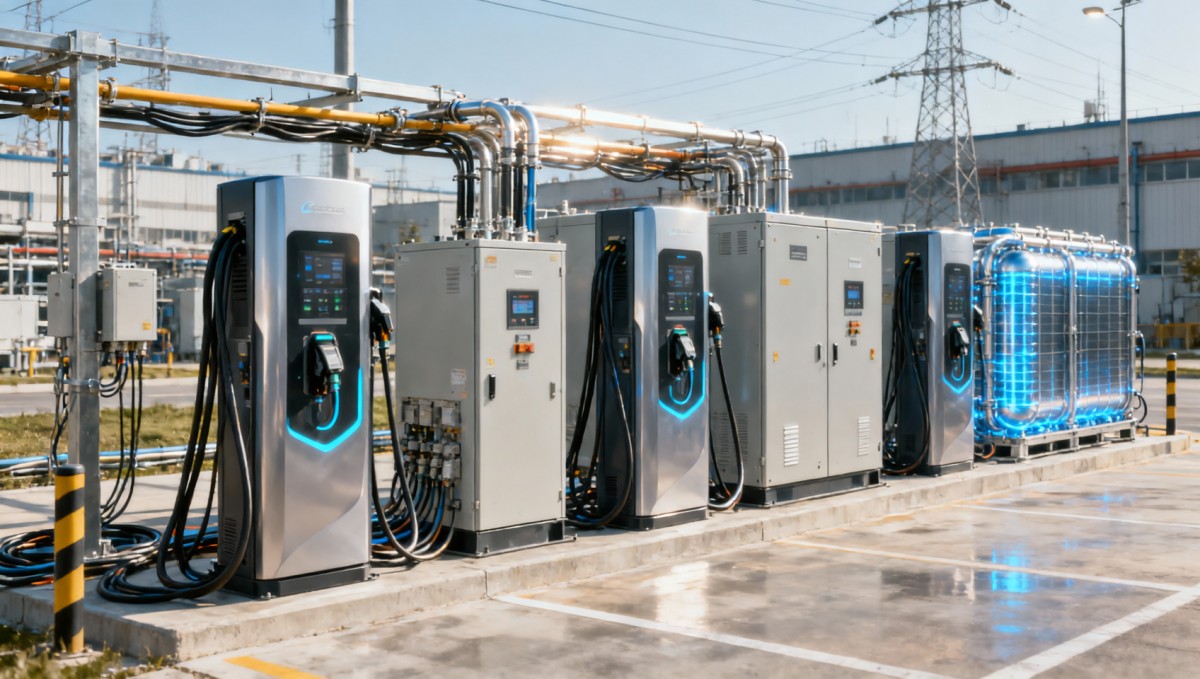

Fast charging site upgrades that cost more than expected

Fast Charging site upgrades often cost more than expected because charger capacity is only one part of the equation. From utility scale interconnection and power transformers to ESS, liquid cooling ESS, Battery Storage, and broader Grid Stability needs, every layer of Energy Hardware affects budget, uptime, and Grid Resilience. This guide explains the hidden cost drivers behind Renewable Integration and what operators should evaluate before expansion.

Why do fast charging site upgrades exceed the initial budget?

Many operators begin with a simple assumption: if demand grows, adding more fast chargers should scale in a predictable way. In practice, the charger itself may represent only one layer of project cost. Once power demand moves from a modest site load to a high-power charging hub, upstream electrical infrastructure often becomes the dominant budget factor.

A site that supports 2–4 DC fast chargers can behave very differently from one expanding to 6–12 units, especially when power ratings increase from 120 kW–180 kW to 300 kW–480 kW per dispenser. At that point, transformer capacity, switchgear replacement, cable routing, harmonic performance, thermal management, and utility coordination can all trigger additional capital expense and longer deployment schedules.

This is why information researchers and site operators should assess charging upgrades as a grid-connected energy project, not just an EV equipment purchase. G-EPI approaches this issue through cross-sector engineering analysis, connecting EV Charging Infrastructure with ESS, Smart Grid & Transformers, and the wider requirements of resilient power architecture.

The hidden cost problem becomes even more visible in mixed-use environments such as logistics depots, retail forecourts, fleet yards, and highway corridors. These sites often have variable load profiles, constrained utility access, and strict uptime expectations. A budget that ignores these conditions can look acceptable at the concept stage, then expand sharply during design review, interconnection, or commissioning.

The most common hidden cost layers

• Utility interconnection studies, which may require 4–12 weeks for early review and significantly longer where feeder reinforcement is needed.
• Transformer and switchgear upgrades when existing service was designed for building loads rather than high-power EV charging peaks.
• Civil works such as trenching, resurfacing, drainage correction, equipment pads, and bollard protection, which are often underestimated in retrofit sites.
• Power quality mitigation, including harmonics, voltage drop control, grounding improvements, and protection coordination.
• Thermal and environmental controls for Battery Storage, liquid cooling ESS, or charger cabinets in high-heat or high-dust operating zones.

For decision-makers, the key lesson is clear: charger count does not equal total project cost. The better planning model starts with site power availability, duty cycle, utilization forecast, and resilience requirements, then maps the charging hardware into that framework.

Which infrastructure elements usually drive the largest cost increase?

When fast charging projects move beyond a pilot phase, cost escalation typically comes from infrastructure elements that are less visible during early vendor discussions. Operators may compare charger prices across suppliers, yet overlook the cost of preparing the site to deliver stable power under simultaneous charging events. In high-throughput applications, the electrical backbone can cost as much as or more than the charging equipment itself.

A useful way to frame this is to separate spending into four layers: utility-side readiness, on-site distribution, energy balancing, and operational resilience. Each layer affects both capital expenditure and uptime risk. This is especially important for operators running commercial fleets, public charging plazas, or mission-critical sites where a single outage window can disrupt revenue, schedules, or service commitments.

The table below summarizes the infrastructure components that most often push a fast charging site upgrade above the expected budget. These are not rare exceptions. They are recurring cost drivers across urban retrofits, brownfield industrial sites, and greenfield corridor builds.

The main takeaway is that cost growth usually follows power density. As charging demand intensifies, the project shifts from equipment procurement to integrated power engineering. That is why G-EPI places charger upgrades in a broader context that includes transformer loading, ESS strategy, and Grid Stability under real operating conditions.

What operators should validate before final budget approval

Power readiness checklist

• Confirm the site’s available service capacity under coincident loading, not only nominal connected capacity.
• Review expected charger utilization by hour, day, and season to understand realistic peak demand windows.
• Check whether transformer replacement, medium-voltage access, or switchboard upgrades are triggered above a certain expansion threshold.
• Evaluate whether ESS can reduce demand spikes or defer part of the utility upgrade in a 1-phase or 2-phase deployment strategy.

In many cases, a 3-step validation process is enough to prevent major budget surprises: first establish real load growth, then model site power limitations, then compare reinforcement versus flexibility options such as staged deployment or Battery Storage support.

Should you add more grid capacity, install ESS, or redesign the charging architecture?

There is no universal answer, because the right solution depends on load profile, land availability, utility conditions, and uptime expectations. However, most upgrade decisions fall into three pathways: expand grid capacity directly, use ESS to manage peaks, or redesign the charging topology to spread demand more intelligently. Each approach changes both the investment profile and the operational risk curve.

Direct grid reinforcement is often the cleanest long-term answer where utility support is available and future throughput is expected to keep growing over 3–5 years. Yet it can also be the slowest pathway. In constrained markets, utility study cycles, equipment lead times, and substation dependency can delay energization far beyond the expected charger installation schedule.

ESS and liquid cooling ESS become especially relevant when operators need faster deployment, demand charge management, or backup capability. These systems can support burst charging, reduce peak grid draw, and improve Grid Resilience. But they also require careful design around thermal control, cycling strategy, fire safety provisions, and integration logic between chargers, power conversion systems, and site controls.

Redesigning the charging architecture can be a lower-cost alternative than it first appears. Dynamic power sharing, staggered charging, fleet scheduling, and zoned charger allocation may reduce the need for immediate electrical overbuild. For operators with predictable dwell times, this can create a better return than pursuing maximum installed power on day one.

The following comparison table helps clarify which route is typically more suitable based on project constraints, deployment speed, and operational objectives.

For many operators, the hybrid staged model offers the best balance. It allows the first 1–2 build phases to go live while preserving room for future reinforcement. This reduces early overinvestment and improves capital discipline, especially in markets where charging demand is still maturing.

How to compare options without oversimplifying

1. Model actual utilization rather than assuming all ports operate at rated power continuously.
2. Separate one-time grid upgrade costs from recurring energy and demand charge exposure.
3. Check whether Battery Storage adds resilience value beyond peak shaving, such as outage bridging or renewable integration.
4. Review future expandability over a 24–60 month horizon, not only opening-day capacity.

This comparison discipline is where data-driven analysis matters most. G-EPI helps stakeholders evaluate not just hardware categories, but the engineering logic behind each path, using system-level thinking rather than isolated equipment pricing.

What procurement teams and site operators should check before approving expansion

Procurement errors in fast charging site upgrades often come from buying to a nameplate target instead of an operational target. A site may specify 8 chargers at a high power rating, yet fail to define charger concurrency, minimum uptime threshold, acceptable queue time, or resilience expectations during partial grid events. Without these criteria, technical bids are hard to compare and hidden cost exposure stays high.

Operators should build their purchasing process around at least 5 core dimensions: electrical compatibility, duty cycle fit, thermal strategy, standards alignment, and serviceability. This is where G-EPI’s cross-pillar view becomes useful, because charger procurement should not be separated from transformer sizing, ESS interface logic, or Renewable Integration pathways.

The procurement table below can be used as a practical review tool for teams comparing upgrade pathways, charger vendors, or integrated site solutions. It focuses on the questions that most directly affect lifetime cost, deployment risk, and operational continuity.

Teams that use this structure tend to avoid two expensive mistakes: purchasing for maximum theoretical speed without verifying grid support, and adding ESS without a clear operating strategy. Both errors create attractive proposals on paper but weak performance in the field.

Implementation sequence that reduces risk

A practical 4-step process

• Step 1: Audit the existing electrical system, charger duty cycle, and utility constraints before finalizing hardware scope.
• Step 2: Compare at least 2–3 architecture options, including grid-only, ESS-supported, and staged deployment scenarios.
• Step 3: Align the preferred design with applicable IEC, UL, IEEE, and local interconnection expectations before procurement lock-in.
• Step 4: Define commissioning, monitoring, and maintenance requirements for the first 6–12 months of operation.

This sequence helps operators move from a price-first approach to a lifecycle-first approach. That shift is critical in fast charging projects, where small planning gaps can create large cost overruns later.

Common misconceptions, compliance issues, and future planning questions

A common misconception is that faster chargers automatically deliver better commercial performance. In reality, the best charging design depends on vehicle mix, dwell time, turnover pattern, and local power conditions. Installing the highest-rated charger without the right supporting infrastructure can increase capex while still leaving the site exposed to curtailment, thermal limits, or poor energy economics.

Another misunderstanding is that compliance is a paperwork step that comes late in the project. For fast charging site upgrades, standards and certification pathways influence enclosure choices, protective device coordination, grounding design, and equipment integration logic from the earliest stages. IEC, UL, and IEEE references are not interchangeable checkboxes; they shape engineering decisions across the full site architecture.

Future planning also matters. A site designed only for today’s traffic may require repeat trenching, pad expansion, or switchgear rework within 12–24 months. On the other hand, overbuilding too early can lock capital into underused assets. The most effective plans preserve expansion pathways while matching current demand realistically.

This is why G-EPI emphasizes verifiable data and engineering integrity. Decisions around EV Charging Infrastructure should be benchmarked against broader power-system logic, including Grid Resilience, Renewable Integration, ESS behavior, and the role of Smart Grid & Transformers in site reliability.

FAQ

How long does a typical fast charging site upgrade take?

The answer depends on utility readiness, civil complexity, and whether major electrical upgrades are needed. A relatively simple expansion can move through review and installation in several weeks, while projects involving transformer replacement, interconnection studies, or ESS integration may extend over multiple months. The key is to separate equipment lead time from utility and site preparation time.

When is Battery Storage worth considering?

Battery Storage becomes attractive when the site faces high peak demand charges, limited grid capacity, or strong resilience requirements. It is also valuable when operators need phased deployment or want to support Renewable Integration. However, it should be selected based on a clear dispatch strategy, not simply added as a generic upgrade feature.

What should operators ask vendors before expansion?

At minimum, ask for a site power assumption sheet, a charger concurrency model, an interconnection dependency list, and a maintenance concept covering the first operating year. Also ask how the design handles transformer loading, thermal conditions, and future capacity expansion. These questions reveal whether the proposal addresses real infrastructure constraints or only charger nameplate ratings.

Are liquid cooling ESS systems always necessary?

Not always. Liquid cooling ESS can be highly suitable for high-density cycling, demanding ambient conditions, or applications where thermal stability and system compactness matter. But air-cooled approaches may still be reasonable in less intensive duty cycles. The correct choice depends on operating temperature range, cycling profile, enclosure design, and maintenance strategy.

Why consult G-EPI before your next charging expansion?

Fast charging site upgrades are no longer isolated charger projects. They sit at the intersection of EV Charging Infrastructure, Energy Storage Systems, Smart Grid & Transformers, and broader decarbonization strategy. G-EPI helps stakeholders evaluate these layers together, so expansion decisions are grounded in verifiable engineering logic rather than simplified equipment assumptions.

For information researchers, G-EPI provides a structured way to compare architecture choices, compliance pathways, and technology trade-offs. For operators, it supports more practical planning around uptime, power availability, thermal management, and phased capacity growth. This is particularly valuable where utility uncertainty, site constraints, or mixed load profiles complicate traditional procurement decisions.

You can consult G-EPI for parameter confirmation, charger and ESS selection logic, transformer and grid interface considerations, delivery timeline planning, standards alignment, and scenario comparison for phased deployment. If your team is weighing grid reinforcement against Battery Storage, or assessing how to improve Grid Stability and Grid Resilience during expansion, a technical review can prevent expensive redesign later.

Contact G-EPI when you need support on site upgrade feasibility, architecture comparison, certification and interconnection considerations, or budget-risk screening before procurement. The goal is not to overspecify the site. It is to build a charging system that matches real demand, supports reliable operation, and scales with confidence.
